ZDZ INSTALLATION OF THE IGNITION UNIT
ZDZ引擎電子點火安裝及調整
1. Before installing the ignition, read the instructions carefully.
1. 在安裝電子點火之前, 仔細地讀說明書。
2. Make sure that batteries cannot be connected while installing the ignition.
2. 當安裝電子點火器請確定沒有接上電池。
3. When placing the ignition into the model, choose the position preventing mechanical damage of electric unit or cables during operation. The ignition and all parts that are connected to it ( engine including the batteries and cables must be placed as far as possible ( at least 25 cm) from the radio set and all it's parts ( batteries, locator, cables etc.) Fix cables well whenever they lead through the model. The guarantee doesn't include mechanical damage of ignition or cables.
3. 當安裝電子點火器, 請選擇盡量遠離接收器.伺服器至少25 cm以上防止電子干擾並利用保護材料包覆纜線及電子點火器避免震動損傷。整理電線並固定好在模型內。
4. Distance between electrodes on spak plug UR 17 must be 0.35 mm
4. UR 17火星塞電極之間距必須是0.35 毫米
INSTALATION OF SENSOR
The basic adjustment of the preignition is set up by the producer of the engines. This adjustment is 0,1-0,3 mm before the top dead centre of the piston. If you are adjusting the preignition once more it is necessary to adjust the engine according to the following points:
的基本的調整由引擎的生產商設定。這調整是活塞在上死點前0,1-0,3 毫米為基準點。如果您調整點火提前請根據以下表列:
1.
Adjust the engine so as to the piston was 0,1 - 0,3 mm before the top dead centre.
1. 轉動引擎讓活塞停在上死點前0,1 - 0,3 毫米。
2. Move the holder of the sensor at maximum in sense of turn over of the propeller.
2. 移動霍氏感應器的固定座離磁鐵最遠的地方。(開電子點火開關)
3. Then, move the holder of the sensor when the ignition is switched on as far as the spark springs.
3. 然後,握住主軸不動.移動傳感器的固定座直到火星塞打出火花。
4. Fix the holder of the sensor in this position and the ignition is set up.
4. 固定霍氏感應器的固定座在這個位置並且緊固定螺絲完成設定。
5. The engine is prepared to run after the backward screw on of a spark plug.
5.鎖緊火星塞以後引擎就準備發動。

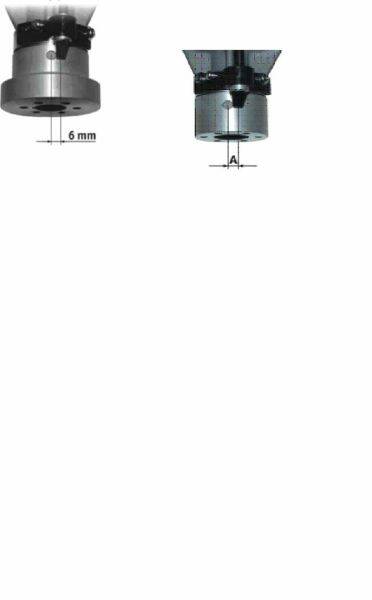

You can also use quick setup as shown on picture.
您也可以如照片所示快速方法設定
Distances are measured from center of magnet to the center of sensor. Position of piston is exactly in TDC. Distances are 6 mm for 120 and 160 engines and for other engines see below:
活塞的位置確切地是在TDC(上死點)距離是從磁鐵的中心到霍氏感器的中心。距離是6 毫米為120CC 及160CC引擎其它引擎調整間距如下:
2.
Measure A
40 RV-L ?? 7 mm
60 RV ???- 6 mm
80 RV ???- 6 mm
80 B2RV-L - 6 mm
All the other modes of run are controlled by the microprocessor in dependence on the revolutions of the engine. The spark ignition happens after the magnetic field leaves the sensor. There is a safety fuse installed in the ignition PCI, that switches off the device after one minute of inactivity. For the recovery of the function it is necessary to switch the power supply off and reconnect it in about few second.
如果您需要拆裝電子點火的任何部位.請在關閉電源一分鐘以後進行。因為其內部會續存大量的高電壓.這樣可以避免電擊。
