本帖最後由 erickqs 於 2017年3月18日 11:54 PM 編輯

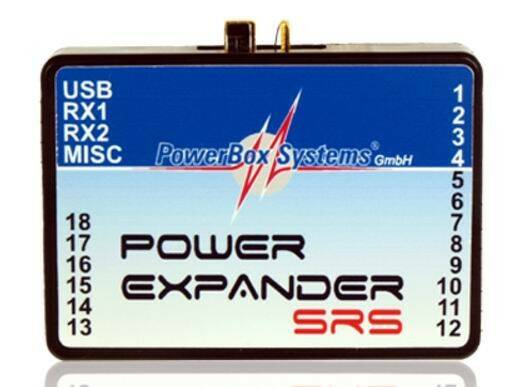

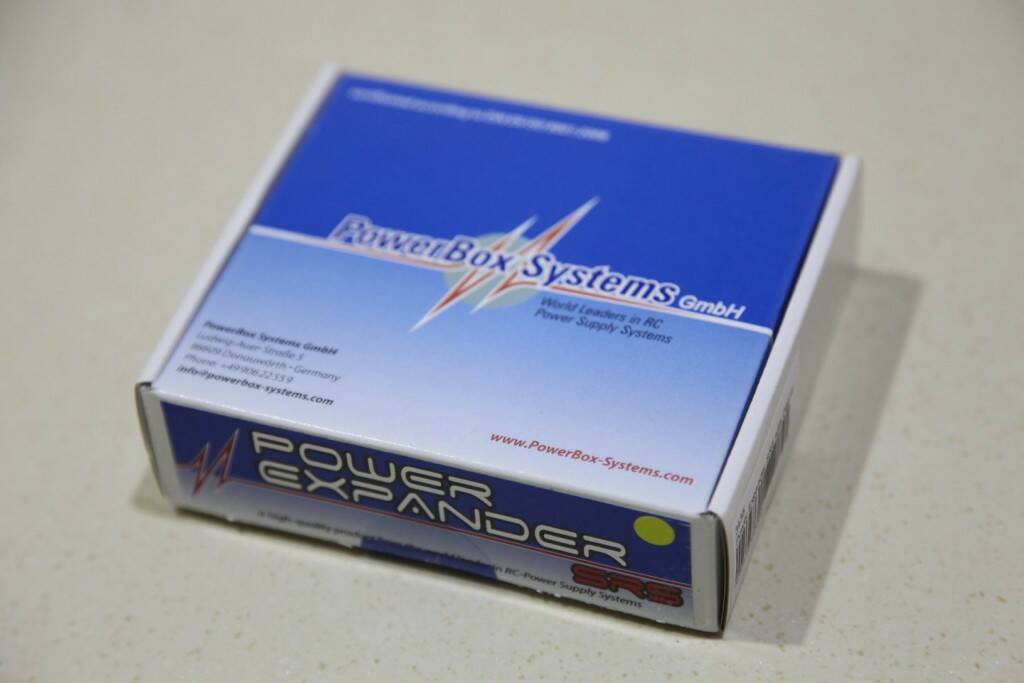

全新未拆封 PowerBox 18動 擴充盒，支援市面上最新多款遙控器 FUTABA S-BUS, JR DMSS X-BUS, 支援雙接收，支援高壓，大電流30A，賣5000包郵
- Access to a maximum of eighteen channels

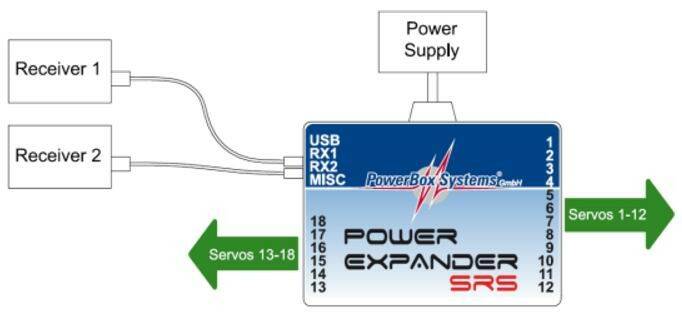

- Simple wiring: the receivers are connected using a serial link
- Integral SRS, allowing the use of two receivers
- Compatible with: Futaba, Spektrum, Graupner, Jeti, Multiplex and JR
- High-current power socket MPX or Deans
- S-BUS output for use in a BUS system
- Hold/Failsafe option for each output individual
- User-variable frame rate
- Can be updated using the PowerBox USB Interface
Technical Data| Operating voltage | 4.0V - 9.0V | | Power supply | 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH | | Current drain Power-on state | 25mA | | Maximum load current | Peak 30A | | Signal input | serial | | Supported RC systems | Futaba, Spektrum, Jeti, Graupner, JR, Multiplex | | Receiver redundancy | SRS | | Channels | 18 |
| Servo sockets | 18 | | Servo signal resolution | 0.5µs | | Signal frame rate | 12ms, 15ms, 18ms | | Dimensions | 55 x 40 x 14 mm | | Weight | 25g | | Temperature range | -30°C to +75°C |
|
|
|
發表於 2017年3月18日 11:44 PM
