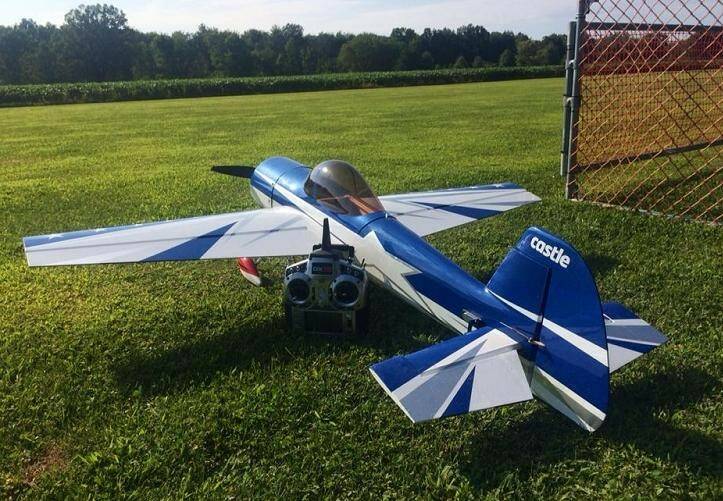

The 3DHobbyShop 60" Yak 55 is super-high performance scale wood/carbon ARF aircraft. Using the recommended Torque 6S power system, the Yak 55 is very fast and powerful, and capable of a staggering array of hardcore 3D, precision, and gyroscopic maneuvers. Available in two gorgeous color schemes in genuine Oracover/Ultracote, the Yak includes all of the features you've come to expect in 3DHS aircraft:
- Carbon fuselage stringers
Compatible with a variety of power systems using 4S-6S Lipo batteries, the Yak requires 4 mid-size metal gear servos. Hitec HS-7245MG's are recommended.
Like our 91" Yak 55 model, the 60" Yak 55 includes a modular wing-tip system for variable yaw-stability. You can fly with or without the included SFG's, and when using the SFG's you can fly with or without the differential-drag wingtip blocks. This tip arrangement allows you to tailor the feel of the Yak in high-speed maneuvers to your liking.
If you want the next level of insane aerobatic performance in a mid-size lightweight electric package, the Yak-55 is here for you.
組裝說明書
Specifications:
Wingspan: 60"
Length: 56.25" with spinner
Wing Area: 620 Sq. Inches
Weight: 4.5-5.5 lbs.
Required Equipment:
Motor:
Hacker A40-10S with 4S mAh, 14x7 prop
Hacker A40-12S with 5S mAh, 13x6.5 propHacker A40-12S with 4S mAh, 14x7 prop
Hacker A40-14S with 5S mAh, 14x7 prop
Torque 4016T/500 MKII with 6S mAh, 16x7 prop
ESC:
Castle Edge Lite 75A
AirBoss 80
Hacker X70 SBEC
Castle Ice Lite 75A
Prop:
14 x 7
15 x 7
16 x 7
Spinner:
63mm (2.5 inches)
Servos:
4 x Hitec HS-225MG (Good)
4 x Hitec HS-5245MG (Better)4 x Hitec HS-7245MH (Best)
Servo Extensions:
1 x 18" Elevator
2 x 6-8" Ailerons
1 x 12" ESC
