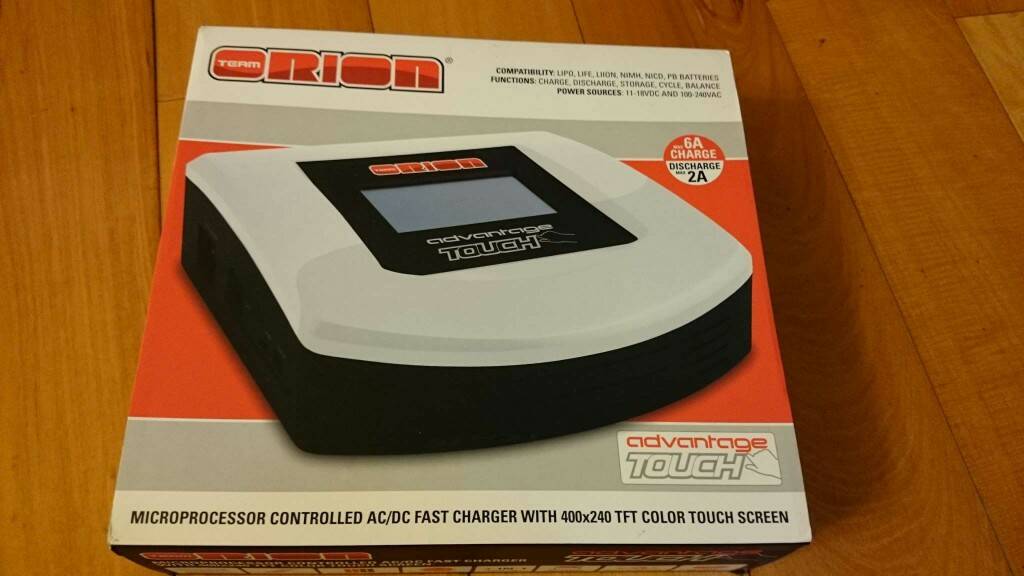

[2800] Orion彩色觸控螢幕交直流充電器 6A/2A

jackkiller001

使用不到一個月
因為想升級所以出售
購買於日本境內
有鋰電保存功能、充放電、平衡

以下為原廠資料
http://www.teamorion.com/index.php?dispatch=pages.view&page_id=46
Microprocessor controlled advanced digital circuit
Input Voltage: 11-18VDC and 100-240VAC
Screen: Spectra TFT 400x240 color touch screen
Functions: charge, discharge, storage, cycle, balance
Charging Capability: LiPo/LiFe/LiIon 1-6 cells, NiMH/NiCd 1-15 cells, Pb 2-20V
Charge Current: adjustable 0.1-6A (variable with number of cells, 50W max)
Discharge Current: adjustable 0.1-2A (variable with number of cells, 5W max)
Charge and discharge curve graphic engine
Charge Assistant
ATTS Advanced Touch Technology Software
HPC High Precision Charging System
Cycle modes: C->D, D->C, D->C->D

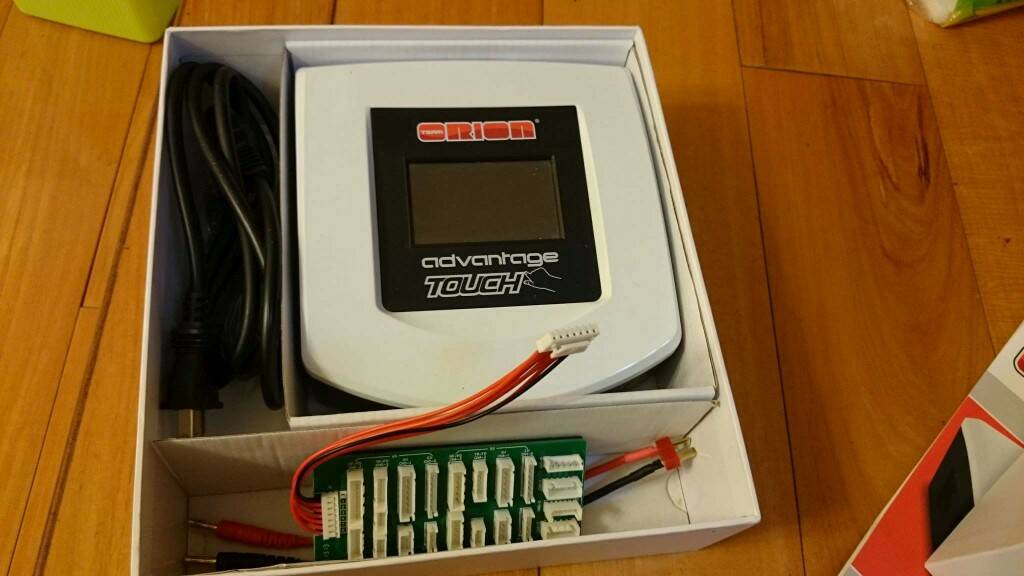

Unique 4-in-1 Balancing Board included (XH, TP/FP, EH, HP/PQ)
Balancing: adjustable on/off
Advanced Stand Alone Balancing
Discharge Cut-off voltage: adjustable
Multi-Protection System: Input and output reverse polarity protection
Multi Language Menu (updatable via USB port)
Charge and discharge data storage for later review
Adjustable automatic delta-peak charge cutoff
Temperature monitoring and cut-off (optional)
TRX-, Deans-, Tamiya-, Crocodile Clips, BEC- and Futaba- charging cables
Dimensions: L170xW158xH45mm
Weight: 662g
