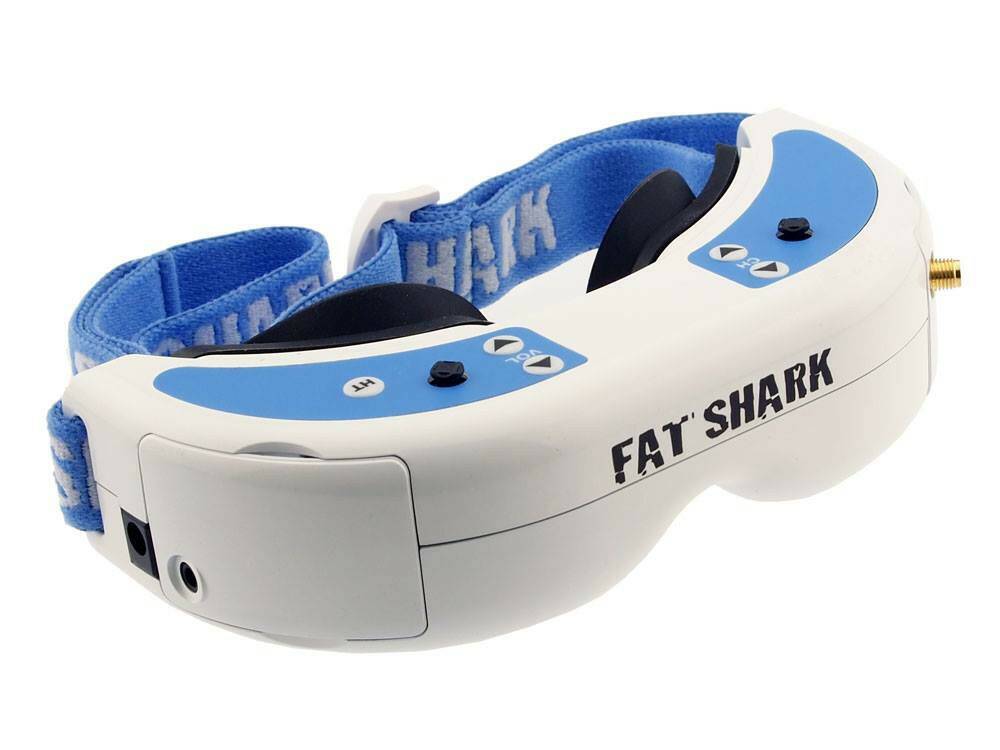

K0922110422 發表於 2014年3月11日 11:09 PM
skyzone整體解析度都不錯.問題就是那個內建32頻接收有問題.雜訊一堆..
不介意邊框不清楚.藍藍的話.就買at ...
我的目的是要同時帶著小朋友FPV飛上天，所以需要兩副眼鏡

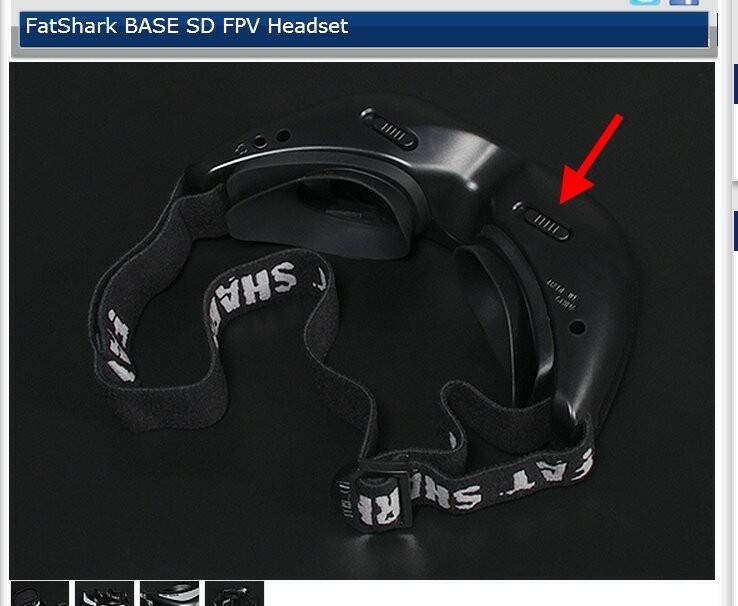

可以請教一下，紅色箭頭這是再調整瞳距用的嗎？
剛才看到這款
http://www.rctw.net/hobbyking/st ... SD_FPV_Headset.html（被ＲＣＴＷ擋掉了）
在Hobbyking上 "FatShark BASE SD FPV Headset"
規格似乎和attitude一樣，只差沒接收和搖頭裝置
==我把規格貼過來==
Built for serious FPVer’s, the new BASE SD goggle is the only choice for tethered video piloting. The BASE SD has dedicated tooling for a smaller, sleeker profile and are the lightest video goggles anywhere (120g). The controls are minimal (brightness/contrast) to ensure years of reliability. The new 35 degree FOV display strikes a perfect balance between large screen immersion and compact pixel density clarity. The BASE SD sports the same polarized backlight technology used in the gorgeous Dominator display for vibrant colors and has adjustable IPD for dialing in the optic sweet spot. The BASE SD FPV pedigree is evident from the FPV specific features that are not found on common video glasses such as high pass filtering to remove video noise from 433Mhz and 2.4Ghz UHF radios and a video sync tip signal conditioner to tolerate poor video inputs resulting from mixed component and wireless setups. The exterior is coated with a quality rubberized texture, the IPD sliders have tactile feedback and the secured rubber eye cups completely block out ambient light. For a Base Station FPV goggle, there really isn’t anything else that can compare.
Kit Includes:
BASE SD headset
3m Power/AV cable
Zipper carry case
Lens cleaner cloth
Headset Specifications:
Optics: FOV (field of view): 35°diagonal (Image size: 1.3m @ 2m)
Interpupillary (IPD) distance: 59 – 69 mm (adjustable)
Supports optional diopter lens inserts: -2, -4, -6 dpt
Audio: Stereo (requires adjustable volume earphone accessory)
User Controls: Contrast/brightness control
Electrical: Power supply: 7 - 13 V (2S/3S supply)
Power consumption (@7.4V nominal): 150mA
Display: Full color LCD LED backlit Kopin CyberDisplay 922,000 pixels binocular display (640 X 480 VGA) NTCS/PAL auto selecting
Weight: 120g
Interface:
Futaba Square 6pin AV in port (Vin, GND, AudR, AudL, Vid)
Power in port
3.5mm stereo earphone port
================================================
另外請問"邊框藍藍的"，是指這樣？（邊緣畫面呈現藍色）
還是這樣？（畫面外的框是藍色）
|
|
