本帖最後由 erickqs 於 2016年9月26日 11:50 PM 編輯

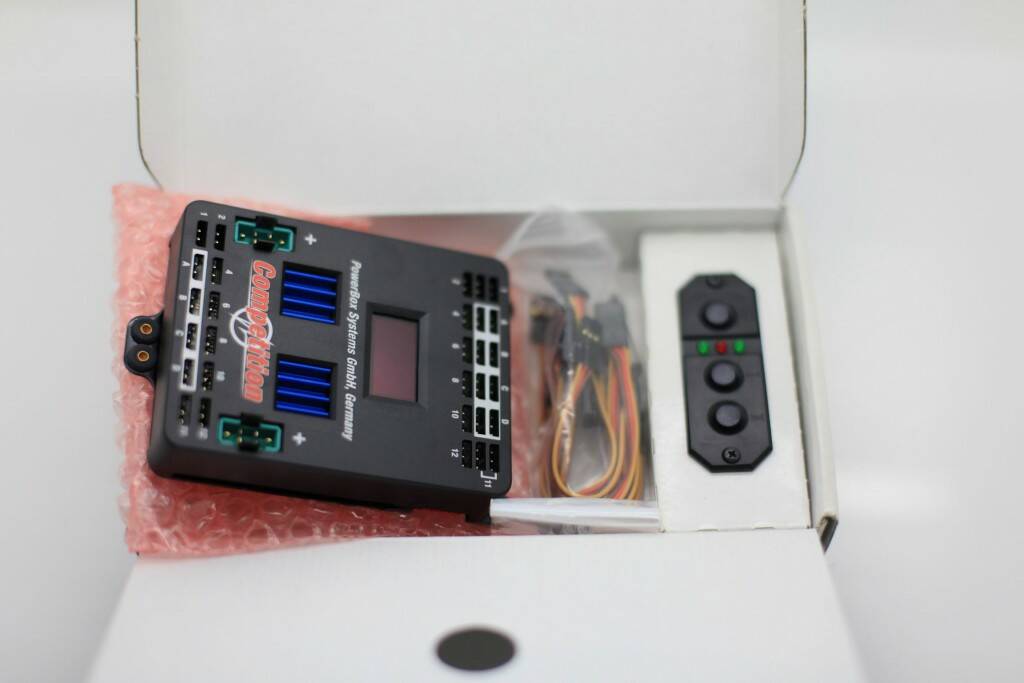

全新Powerbox 分電盤，液晶顯示，支援12頻道，18個伺服機，大型機種的最愛，9000含運，有意請PM.
Specification:
Operating voltage: 4,0 Volts to 9,0 Volts
Power source:
2 x two-cell LiPO batteries 7,4 Volts
2 x five-cell NiCd or. NiMH batteries
2 x two-cell LiFePo batteries 6,6 Volts (A123)
Current drain:
Power-on state approx. 130 mA
Power-off state approx. 15 µA
Dropout voltage: approx. 0,25 V
Max. receiver and servo current: 2 x 10 A (stabilised), 2 x 20 A (Peak - Dependant on cooling)
Servo signal resolution: 0,5µs
Signal frame rate: User variable - 9ms, 12ms, 15ms, 18ms, 21ms
Screen: OLED 128 x 64 pixels, graphic
Bus systems: Spektrum, Multiplex
Servo sockets: 18 sockets, 12 channels, 4 of them match-channels
Temperature range: - 30 °C to + 75 °C
Dimensions: 110 x 72 x 24 mm (incl. base plate)
Weight: 115 g
SensorSwitch: 15 g
EMV approval: EN 55014-1:2006
CE approval: 2004/108/EG
|
|
發表於 2013年9月10日 10:42 PM
