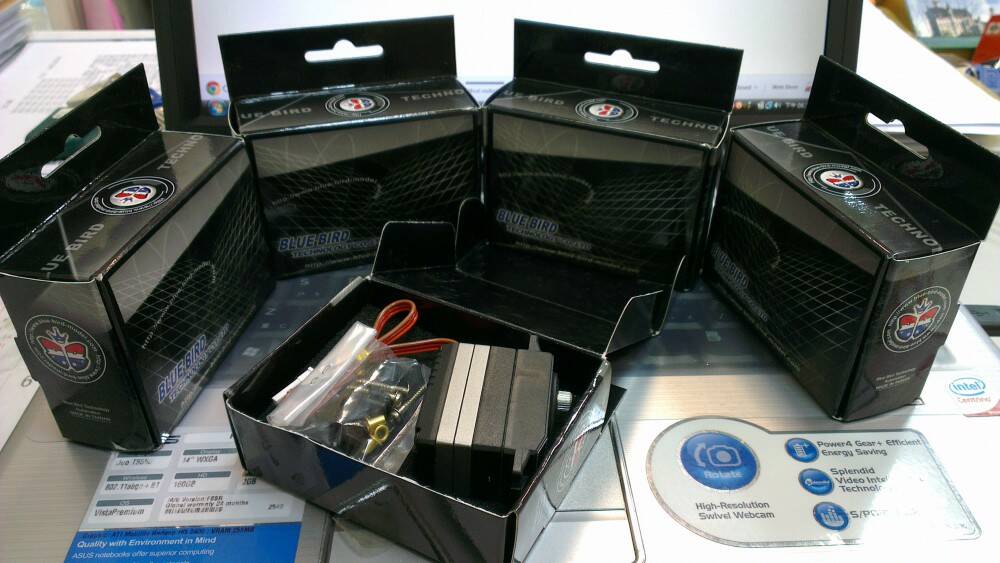

跟台灣經銷商購買的全新品,原預計搭載k牌p-40使用,五顆不拆賣!!
型號BMS-811DMG+HS數位金屬(擺臂五金配件齊全)
官網資料:
1. Carbon nylon gear with smooth curvature
2. Double M9.6 ball bearing (si-oil)
3. 3 pole high-torque motor with low RF noise (CE certified)
4. Rubber seals for waterproof case
5. Futaba compatible 25 tooth output splines
6. Heavy duty servo case
7. Integral heat sink
8. Digital motor drive with ultra-square PWM signal
9. Automatic determination of servo center pulse width
10. Metal gears of aluminum 6061 material combined with light and strong C95 material
11. Fail-Safe function
12. 2PEW coated motor wire for high-temperature use
13. Digital control IC - SOP package with 12bit data transfer
14. MOS-FET motor driver chips that can handle 7A peak loads

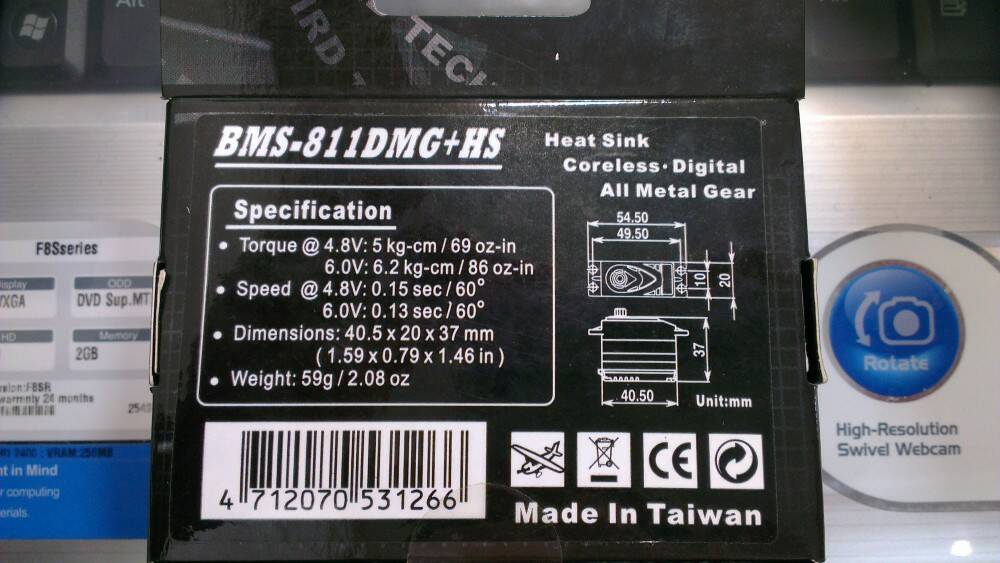

| Weight | 45g / 1.60oz(包裝盒寫59g)
| | Dimensions | 40.5 x 20 x 37 mm / 1.60 x 0.78 x 1.52 inch | | Torque At 4.8V | 5.0kg/cm , 70 oz/in
| | Torque At 6.0V | 6.2kg/cm , 84 oz/in | | Speed At 4.8V | 0.15 sec / 60° at no load | | Speed At 6.0V | 0.13 sec / 60° at no load
|
http://www.blue-bird-model.com/ch/servos/bms-811dmg+hs.html
以上引用官網數據資料,如有不妥立即移除
[ 本帖最後由 ffradio530 於 2013年2月21日 02:45 PM 編輯 ] |
-
-
|
