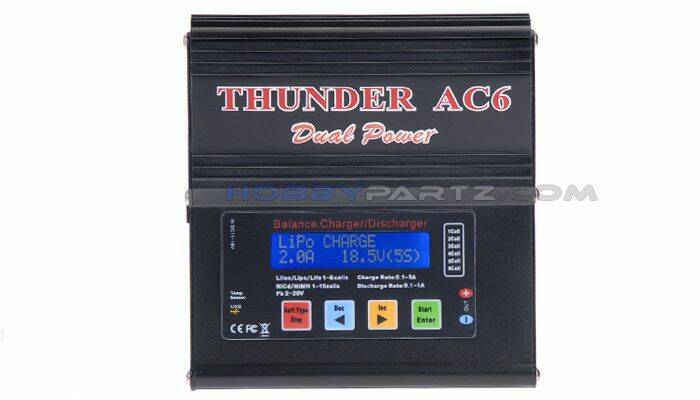

Thunder AC6 充電器 功能同B6ACThunder AC6 充電器 功能同B6AC 免接電源供應器 直接插市電
換機出售
新品價2500
操作電壓範圍：
直流11.0-18.0V
交流/直流適配器 15V/5A
交流輸入電壓 110V~240V
功率：
最大充電功率 50W
最大放電功率 5W
充電電流範圍：0.1~5.0A
放電電流範圍：0.1~1.0A
鋰聚合物電池平衡耗用電流：300mAh/cell
NiCd/NiMH電池數量：1-15 cell
li-ion/Polymer電池數量：1~6 series
pb電池電壓：2V~20V
重量：550g(淨重)
尺寸:134×142×36mm
(說明：不需另外接電源適配器，可直插110V-240V家用電充電）
Specification
Operating voltage: DC 11~18 volts
Charge/discharge power: max. 50/5 Watts
NiCd/MH: 1~15 cells
LiIo/LiPo/LiFe: 1~6 series
Pb: 2~20V
Charge current: 0.1 to 5.0A
Discharge current: 0.1 to 1.0A
No. of cycle: 1 to 5 times
Battery data memory: up to 5 data
Weight: 260g
Dimension: 140*95*28mm
Computer USB port
Temperature sensor port
Built in AC adapter
All Cables comes with Banana Plugs
(No Deans Connector)
Optimized operating software
When charging or discharging, the smart charger offers an AUTO function that sets the feeding current or the cell count of the Lithium battery automatically. For Lithium batteries, this can prevent an over-charging situation which can lead to an explosion should the user not set the program correctly. Every program in the unit is programmed with safety monitoring to validate the user information to ensure maximum safety. These parameters can be set by the user.

2010年10月6日 05:18 PM
High-power and high-performance circuit
The smart charger employs a circuit that has maximum output power of 50W. As a result, the smart charger can charge or discharge up to 15 cells of NiCd/NiMH and 6 series of Lithium batteries with maximum current of 5.0A.
Individual voltage balancer for Lithium batteries inside
Built into the smart charger is an individual-cell-voltage balancer. No external balancer is needed when charging Lithium batteries (LiIo/LiPo/LiFe) for balance charging.
Balance individual cells on discharge
The smart charger also can monitor and balance individual cells of the Lithium battery pack during the discharge process, as well as the charge process. If the voltage of any one cell varies abnormally, the process will be stopped with the error message.
Accept various types of Lithium battery
The smart charger can accept three types of Lithium batteries - LiIo, LiPo and LiFe. They have different characteristics by their chemistry, such as minimum, maximum, and charge termination voltages.
Lithium battery Fast and Storage mode
The smart charger offers additional Lithium programming. Fast charge reduces the charging time of the Lithium battery and the Storage mode controls the final voltage of the battery to be suit for long time storage.
Data store/load
5 data of different batteries programs can be stored and retrieved. These data files can be recetrived at any time you need them without reprogramming.
Cyclic charging/discharging
The smart charger can perform 1 to 5 cycles of charge>discharge or discharge>charge for battery break in/refreshing and balancing.
PC based analysis using USB communication
For the advanced user, the smart charger INCLUDES a PC based program that can analyze the characteristic of the battery through the computers USB port. The software will graph voltage, current, capacity and temperature curves. It also shows the individual voltages of each cell in the Lithium battery pack.
Back-light LCD screen
Include LCD display
Robust outer aluminum case
High-quality aluminum case is durable and very efficient to cool out the internal heat
Advanced temperature sensor cable port (sensor cable not included)
An optional temperature probe contacting the surface of the battery to monitor the battery temperature during charging can be used
This unit comes with cables shown as well as CD & Manual
2010年10月6日 05:20 PM
[ 本帖最後由 ccy6419 於 2011年4月14日 10:01 PM 編輯 ] |
-
|
