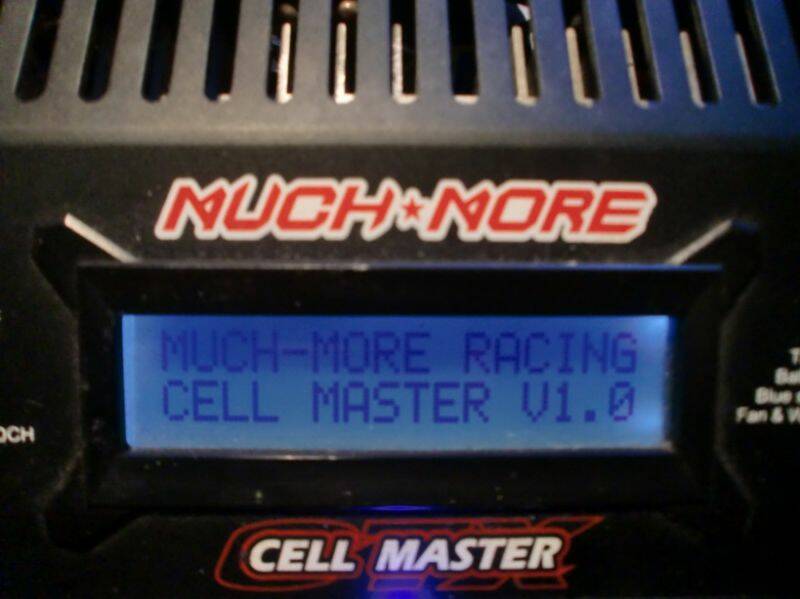

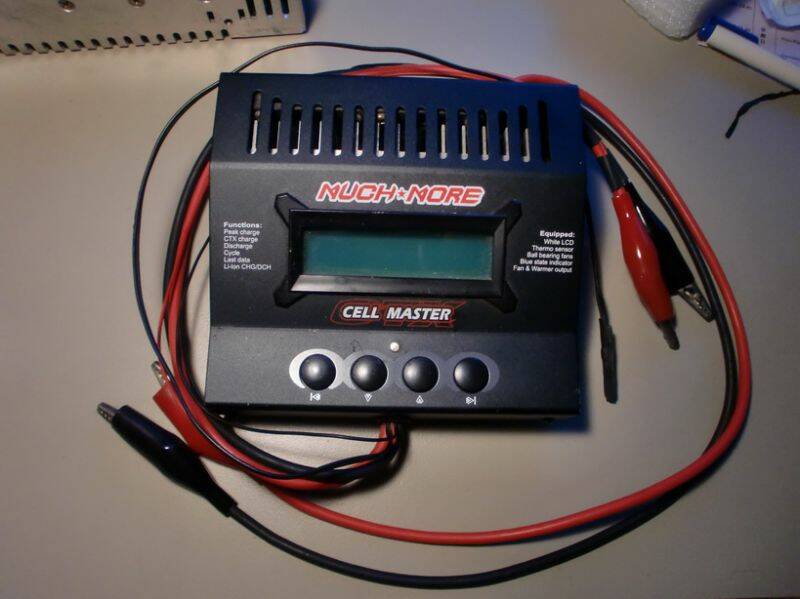

(已售出) MUCH MORE CELL MASTER 充電器

a-boo

功能皆正常。

附說明書與盒子

鎳氫電池最大充放電電流10A，

鋰電池最大充放電電流1A。

輸入電壓 10~16V ，充電節數1-8CELLS，可充Ni-CD, Mi-MH, Li電，0.1-10A可調放電功能

可三階段充電 , 附溫控線

State-of-the-art our brand new charger CELL MASTER is the perfect battery management unit for Charging and discharging all Ni-MH&NiCD.
It has exclusive functions including all latest technology of current chargers.

MAIN FEATURES
PEAK CHARGE.......Super linear charge(3 memories-customizable)
CTX CHARGE.....1/3-2/3-3/3 step charge(3steps charge, 3memories-customizable)
Li-Ion &Polimer CHARGE.......upto 11.1V(3cell)
DISCHARGE.....0.1~10A , 0.1~6.0V cutoff
CYCLE...............upto 3 times repeatition
LAST DATA...save CHG, DCH, CYC data

DC 10.5-15V input
1-8cells(1cell upto 5A,8cell upto 1.5A), 0.1-10A charge, 0.1-10A discharge
Cycle(1~3times), Latest data display.
Peak sensitivity 3mV/pack~99mV/pack, Zero delta peak
Auto start timer charge(count down)
Auto repeak(0~3)
Trickle(on/off)-0.2A
Flex charge(off~9steps)
Temp. sensor included.(15~70deg.C)
Temp. start(for cold batteries)
Capacity cut, Temp cut, Peak cut (one of three messege is shown after charge)
Button tone on/off, 10 melody
IC controlled cooling dual ball bearing fans.
Charge Amp, capacity, delta peak values can be changed during Peak charge.
White back lit LCD
Fan/Battery warmer control output
Easy key operations
Input and output protection against overloads, reverse polarity and short circuits,low or high input voltage, low battery temperature.
Also, the auto restart system after power failure.


[ 本帖最後由 a-boo 於 2011年4月6日 02:35 PM 編輯 ]

s1235892006

收
