[700]9.5新 NTM 3536 800Kv / 722w

cho123

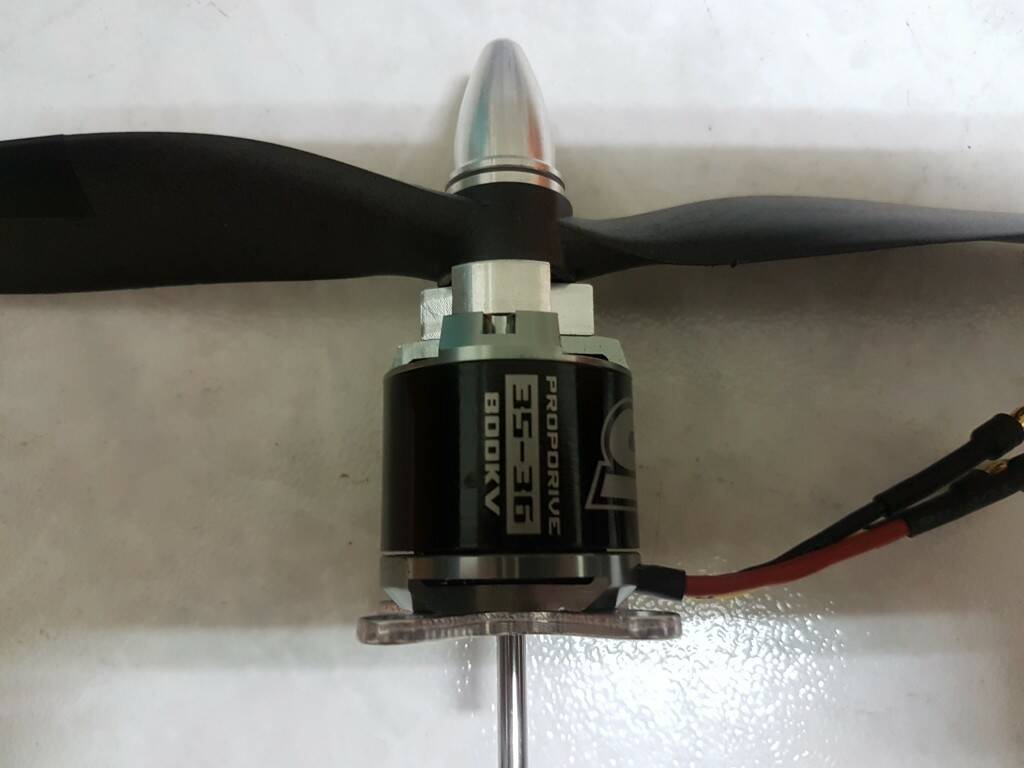

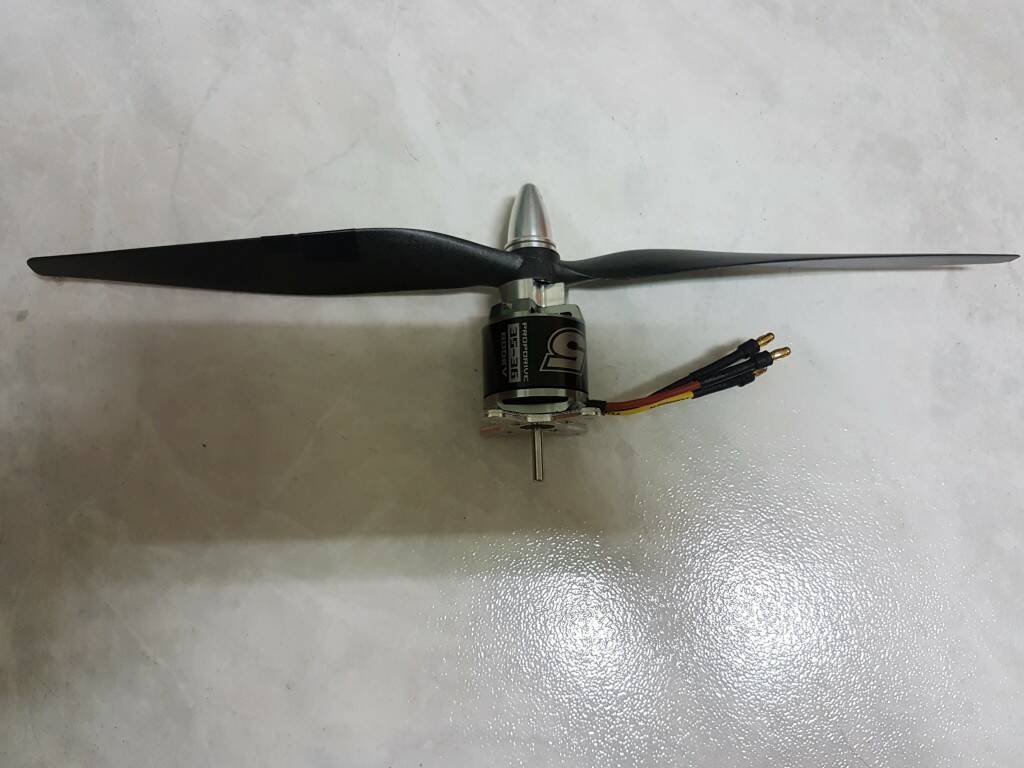

9.5新 NTM  3536  800Kv / 722w 馬達功能正常
附13*6槳,700含7-11店到店

Specs:
Model: NTM Prop Drive 35-36A 800
Kv: 800rpm/v
Max current: 43A
Max Power: 542W @ 12v (3S) / 722W @ 15v (4S)
Idle Current: 1.3A@10V
No. of poles: 14
Shaft: 4mm
Weight: 130g
ESC: 50A
Cell count: 3S~4S Lipoly
Bolt holes: 18.9mm & 25mm
Bolt thread: M3Connection: 3.5mm Bullet-connectorProp Tests:
11.1V
8x4E - 69W - 6.36A - 0.245kg thrust
9x6E - 109W - 10.1A - 0.346kg thrust
10x5E - 120W - 11A - 0.395kg thrust
11x7E - 170W - 16.4A - 0.48kg thrust
12x6E - 175W - 16.6A - 0.6kg thrust
13x4E - 178W - 16.8A - 0.625kg thrust
14x8E - 249W - 24.3A - 0.867kg thrust
15x8 - 270W - 27A - 0.96kg thrust

14.8V
8x4E - 147.7W - 10.3A - 0.40kg thrust
9x6E - 224W - 15.7A - 0.549kg thrust
10x5E - 242W - 17.3A - 0.653kg thrust
11x7E - 358W - 25.6A - 0.73kg thrust
12x6E - 353W - 25.2A - 0.964kg thrust
13x4E - 350W - 25.4A - 0.9.31kg thrust
14x8E - 478W - 35.5A - 1.268kg thrust
15x8- 14.8V - 512W - 38.1A - 1.40kg thrust

GuoLiang

請問東西在哪?可以便宜點嗎？

cho123

推
