本帖最後由 lavin1209 於 2017年5月28日 08:01 PM 編輯

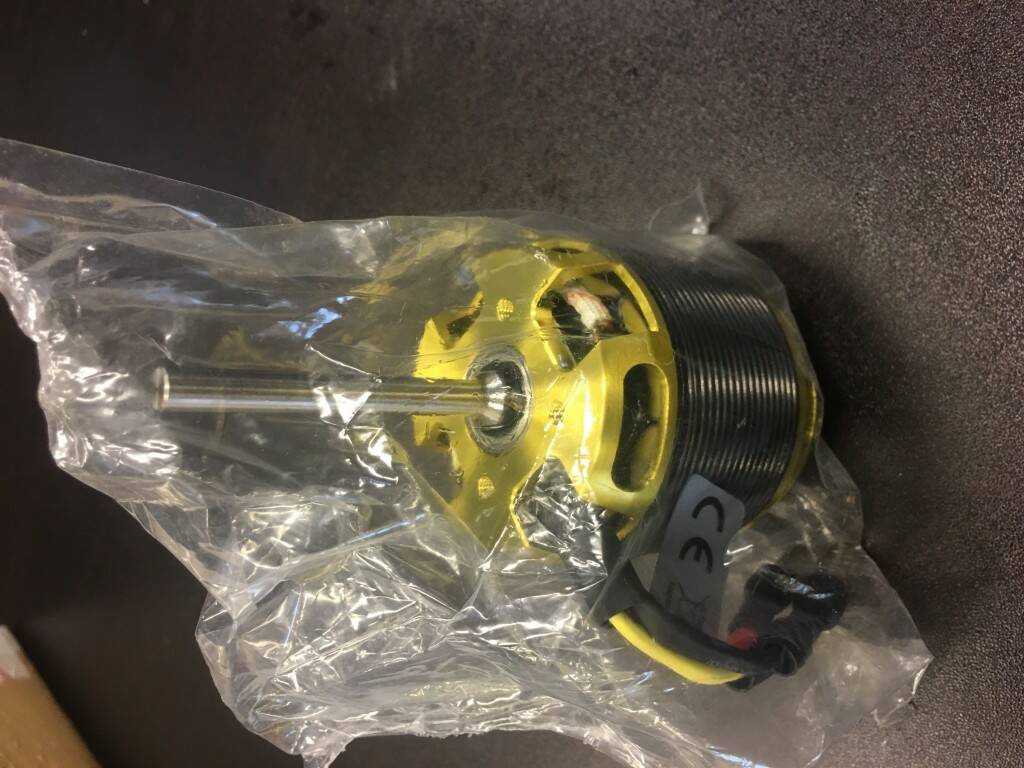

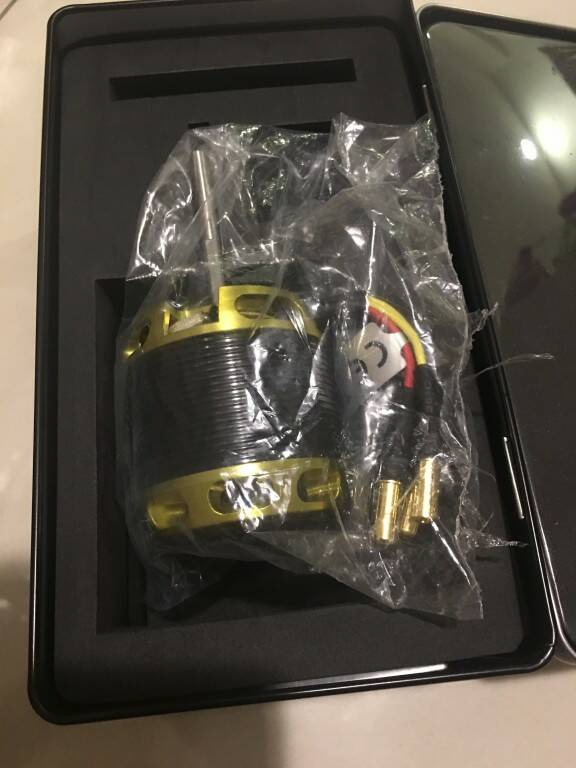

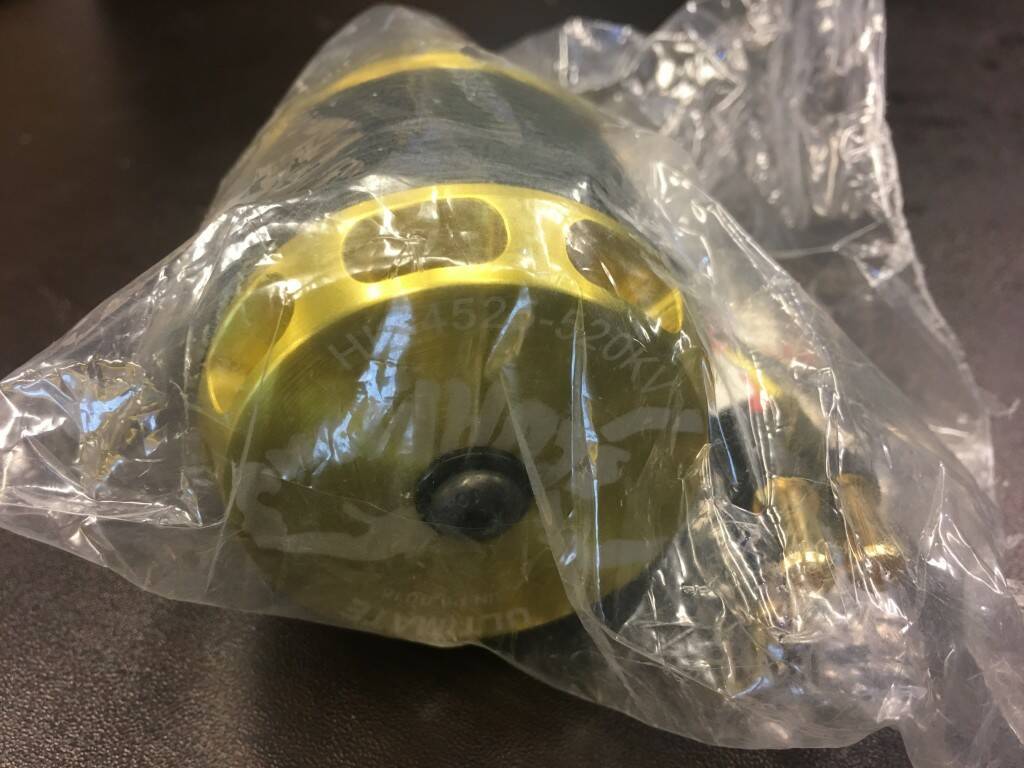

最輕的萬瓦ＹＹ繞線馬達，適合所有700級機子，萬瓦動力＋輕量＋省電特性，讓許多選手玩家愛不釋手，原本萬元售價因多訂一顆，全新廉讓7000元～
有興趣的朋友請回覆或PM，thx~
SpecificationsStator Diameter | 45 mm (1.77 in) | Stator Thickness | 25 mm (0.98 in) | No. of Stator Arms | 12 | No. of Stator Poles | 10 | Motor Wind | 5+6T YY | Motor Wire | 1-Strand 1.4 mm | Motor Kv | 520KV RPM/Volt | No-Load Current (Io/10V) | 1.75 Amps | Motor Resistance (RM) | 0.012 Ohms | Max Continuous Current | 100 Amps | Max Continuous Power | 4450 Watts | Weight | 503 Grams (17.74 oz) | Outside Diameter | 56.7 mm (2.23 in) | Shaft Diameter | 5.98 mm (0.24 in) | Body Length | 53.4 mm (2.10 in) | Overall Shaft Length | 91.5 mm (3.60 in) | Max Lipo Cell | 12s | Max Peak Current | 230A (2 seconds) | Max Peak Power | 10200 Watts (2 seconds) | Motor Timing | 5deg to 15 deg | Drive Frequency | 8kHz
|
|
|
發表於 2017年5月19日 01:37 AM
