太衝動了,一次買太多顆了, 全部都是全新品沒用過. 含運價

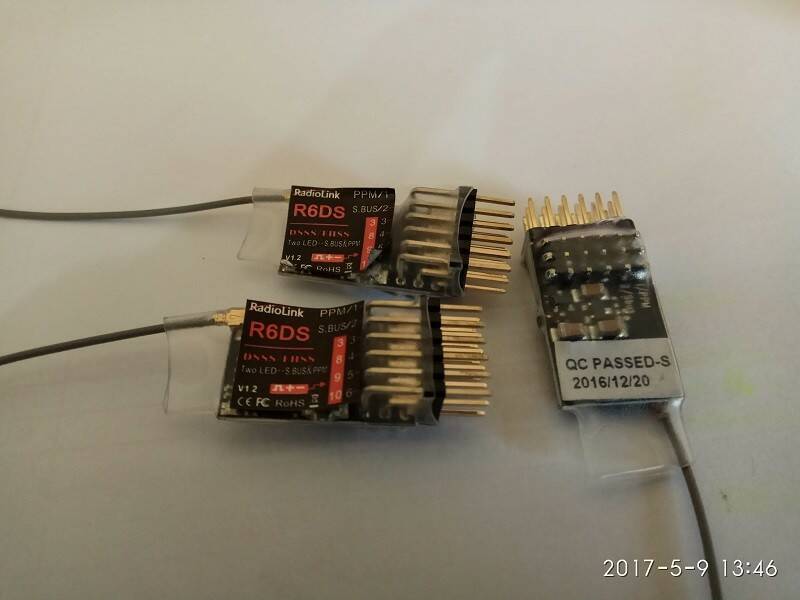

AT9 AT9S 專用R6DS接收. 共3顆
1顆 350元 含運
2顆 670元 含運
3顆 990元 含運
FOXEER HS1177 逆光之王鏡頭. 只有2顆. 鏡頭焦距都是2.5mm 適合裝在穿越機和固定翼上.
逆光還可以看的很清楚.
1顆 850元含運
2顆 1600元含運
下面說明:
在这里更正一下，所谓的HS1177摄像机，其实是FOXEER旗下的一款型号为XAT600M的SONY CCD摄像头，其厂家编号为（Model：HS1177），包括国外很多玩家都误以为此相机名字就叫HS1177.最新版本的HS1177都打上了FOXEER的标志，没有打的都是老款。DALRC为FOXEER全国总代理，品质更有保障，有故障直接换新！ 此款相机逆光表现非常好，国内外很多穿越大神都在使用，本店特别和FOXEER订制的款式为CCD感红外版本，晚上表现比普通版本更好！ 主要参数： 镜头：2.8mm 传感器：CCD: 1/3” Sony SUPER HAD II CCD 分辨率:650 tvl(b / w),600tvl(color) 最低照度：0.01Lux 工作电压：5V-22V 工作电流：70mA 尺寸：25*25mm OSD菜单：支持 详细参数： CCD: 1/3” Sony SUPER HAD II CCD
Pixel: PAL: 976(H) x 494(V);NTSC: 768(H)×494(V)
TV System: :PAL / NTSC(根据国家)
分辨率:650 tvl(b / w),600年tvl(color)
同步:内部同步
快门速度:(CCD IRIS) PAL: 1/50~1/100000 sec; NTSC: 1/60~1/100000 sec
噪声:> 60(AGC OFF)
视频out:75欧姆,同步
Min. Illumination: 0.01Lux
自动增益:/低/中/高
回光补偿(基线轮廓):/回光补偿/强光抑制
rivate shading (PRIVACY): 1~8 private shading area
运动检测(MD):开/关(多水平灵敏度可设置的)
自动白平衡:手动/自动/自动跟踪
Mirror: Horizontal Mirror可选的
Negative: Positive / Negative可选
Color to B&W: Auto
DNR: 2DNR
WDR: D-WDR
Day / Night Shift: Auto/ Color/ B&W
菜单(OSD):英语菜单
白点修复:支持
图像调整:支持
相机标题:支持
Power:DC5V v ~ 22
工作温度:-10 C ~ + 50度
工作湿度:20 ~ 80%
储存温度:-40度C ~ + 60 C
存储湿度:20 ~ 95%
尺寸(毫米):25 25(W * L)
工作电流：70mA
以下为英文介绍： This is a mini version of the classic CC1333 600TVL Sony Super Had II CCD board FPV camera. It uses a 1/3" Sony Super HAD II CCD, Nextchip 2040 DSP, D-WDR, 2D-DNR, minimum illumination reach 0.01 Lux (black/white) with a powerful OSD.
A customized 3pin servo cable is also included.
NOTE: This is the plastic cased version of this camera. See the related items for the heavier metal cased version.
Features:
- 600TVL high picture quality
- 1/3" SONY SUPER HAD II CCD
- Nextchip 2040 DSP
- Powerful OSD menu
- D-WDR (Wide Dynamic Range)
- 2D-DNR (Digital Noise Reduction)
- Low Power Consumption(70mA)
- Mirror function
- Privacy areas: 8 areas
- Low illumination: 0.01Lux
- 2.8mm Lens
- Low Power Consumption
- Suitable for FPV
Specifications:
- Model: HS1171
- CCD: 1/3” Sony SUPER HAD II CCD
- Pixel: PAL: 976(H) x 494(V);NTSC: 768(H)×494(V)
- TV System: PAL/NTSC(according to country)
- Resolution: 650TVL(b/w), 600tvl(color)
- Synchronization : internal synchronize
- Shutter Speed: (CCD IRIS) PAL: 1/50~1/100000 sec; NTSC: 1/60~1/100000 sec
- Noise: > 60 (AGC OFF)
- Video Out: 75ohm, synchronize
- Min. Illumination: 0.01Lux
- Auto Gain: Off/Low/Mid/High
- Back Light Compensation (BLC): Off /Back light compensation/ Strong light suppression
- Private shading (PRIVACY): 1~8 private shading area
- Motion Detection (MD): On/ Off (Multi level sensitivity settable)
- Auto White Balance: Manual / Auto / Auto track
- Mirror: Horizontal Mirror optional
- Negative: Positive / Negative optional
- Color to B&W: Auto
- DNR: 2DNR
- WDR: D-WDR
- Day / Night Shift: Auto/ Color/ B&W
- Menu (OSD): English menu
- White Dot Repair: Support
- Image Adjustment: Support
- Camera Title: Support
- Power Requirement: DC5V~22V
- Working Temperature: -10 C ~ +50 C
- Working Humidity: 20~80%
- Storage Temperature: -40 C ~ +60 C
- Storage Humidity: 20~95%
- Dimensions(mm): 25X25(W*L)
- Power Consumption: 70mA
|
發表於 2017年5月9日 02:22 PM
