本帖最後由 rctony 於 2017年1月8日 10:07 PM 編輯
彩色觸控充電器(內容物如圖無線材,螢幕有貼保護貼)
Features:

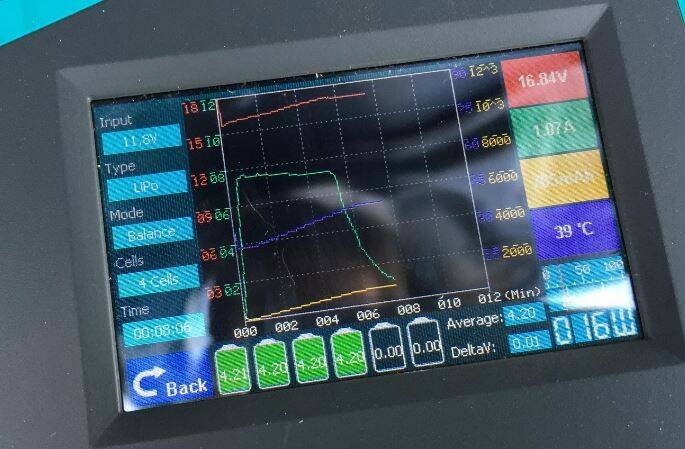

• 3" inch Touch Screen TFT display
• 32 bit processor
• Multiple language interface
• USB Port, 5V 2.1A output
• Supports 6 different types of battery chemistry
• Up to 6S Lithium
• Max charge rate 10 amps
• DC Power Only
Specs:
Touch Screen: 3-inch 400 x 242 px
Operating Voltage Range: 10.0~28.0V
Circuit Power: Max 120W (charging) and Max 10W (discharging)
Charge Current Range: 0.1~10A
Discharge Current Range: 0.1~3A
Current Drain For Balancing LiPo: 300mAh / Cell
Lithium Battery Cell Count: 1~6 series
NiCd / NiMh Battery Cell Count: 1~16 Cells
Pb Battery Voltage: 2 to 24V
Dimension: 148 x 140 x 48mm
Weight: 0.55kg
|
|
發表於 2016年12月10日 03:00 PM
