Fatshark肥鯊Attitude FPV高雄

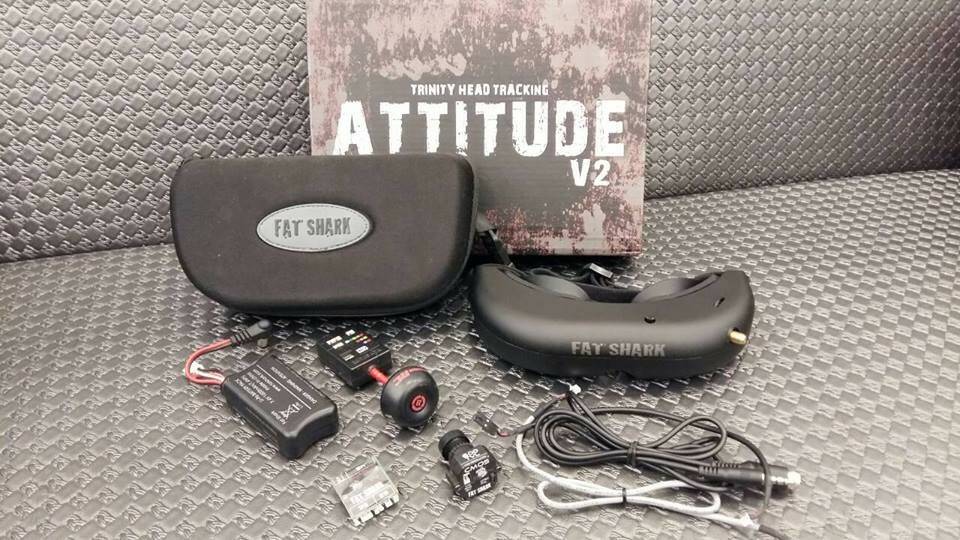

套裝內含:
Atttitude V2 headset (with integrated 5G8 RX and Trinity head tracker)
1/3" CMOS 600TVL FPV tuned NTSC/PAL selectable camera
250mW 7ch 5G8 TX
3dBi 5G8 antenna x 2
1m AV cable
Futaba 6p data cable
3.5mm JR data cable
ezUHF MiniDIN data cable
Zipper carry case
Lens cleaner cloth
User manual

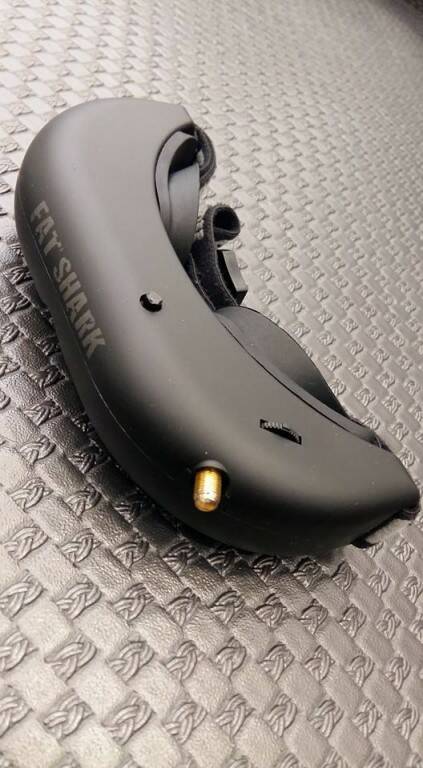

眼鏡規格:
Optics: FOV (field of view): 35°diagonal (Image size: 1.3m @ 2m)
Interpupillary (IPD) distance: 59~69mm (adjustable)
Supports optional diopter lens inserts: -2, -4, -6 dpt
Audio: Stereo
User Controls: Channel selection/ head tracker reset
Electrical: Power supply: 7~13V (2S/3S supply)
Power consumption: 350mA
Antenna: 5G8 3dBi dipole (circular polarized compatible)
Display: Full color LCD LED backlit Kopin CyberDisplay 922,000 pixels binocular display (640 X 480 VGA) NTCS/PAL auto selecting
Head Tracker: Trinity 16bit 9DFO 3-axis
Battery: 2S 7.4V 1000mAh (required, not included)
Weight: 150g
發射器規格:
Power supply: 7~13 V (2S/3S supply)
Power rating: 310mA @7.4V
TX power: 250mW
Antenna: External dipole (circular polarized compatible)
Size: 55x26x11mm
Weight: 22g (w/antenna)
鏡頭規格:
Power supply: 3.5~5V
Power rating: 60mA @5V
Imager: 1/3" CMOS 600TVL, FPV tuned light handling, NTSC/PAL selectable
Lens: 2.8mm IR coated, 100° diagonal FOV (ideal for fixed camera)
Lens extrude: 15x14mm diameter
Size: 21x21x12mm
Weight: 15g
輸入支援:
3.5mm AV in/out port
3.5mm stereo earphone port
PS/2 DIN head tracker data port
接收機頻道:
5740 MHz, 5760 MHz, 5780 MHz, 5800 Mhz 5820 MHz 5840 Mhz 5860 MHz

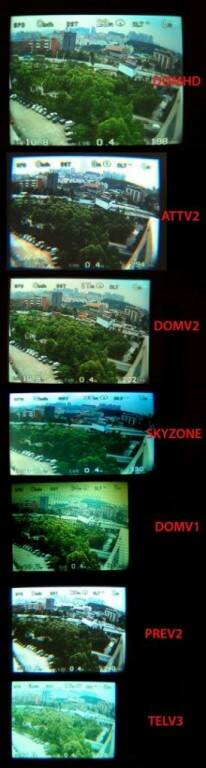

(ATT v2)
|
|
