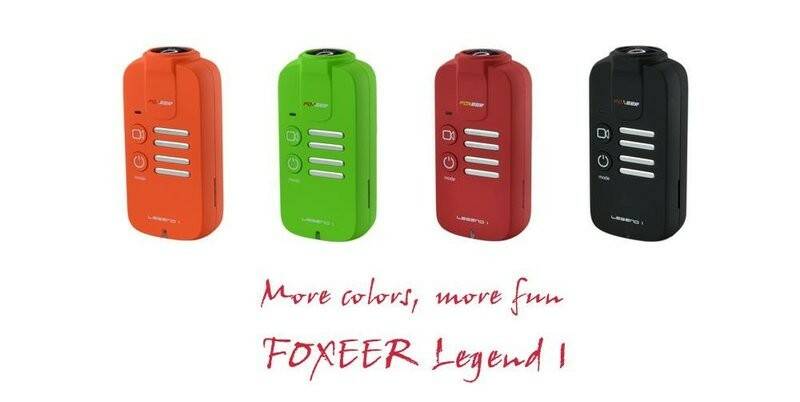

| Foxeer Legend 1 |
| Image | Type | 1/2.33” CMOS 16.37 MP (Sony IMX206) |
| Sensor | Effective Pixels | Approx. 16.35 Mega Pixels (4672 * 3500) |
| | Output Pixels | Approx. 16.76 Mega Pixels |
| Lens | Focal Length | Lens f= 3mm |
| F No. | F= 2.5 |
| F.O.V(D) | 166°(H=120° V=89°) |
| Focusing | Type | Fixed |
| Exposure | Control | Programmed AE |
| Compensation | ±2EV (0.33 EV steps) |
| ISO Equivalent | Auto, 100, 200, 400, 800, 1600 |
| LED | Modes | No |
| White Balance | Auto / Cloudy / Daylight / Incandescent |
| Shooting | Still Image | Modes: Single Image up to 16M |
| FHD 1080P | 1206P: 2304*1296P 30fps |
| 1080P: 1920*1080P 60/30 fps |
| 720P: 1280*720P 120/60/30 fps |
| FOV | Wide / Normal / Narrow |
| Audio | Mic and Speaker (Mono) Equipped |
| Storage | Media | Internal memory: no internal memory |
| External memory: supporting SDHC Card up to 64GB |
| File Format | Photo : JPEG |
| Audio : PCM 48KHZ 16bit |
| Video : H.264 High Profile Level 4.2 MP4 |
| Image Size 5Mp | 16M（4608x3456） |
| 12M（4000x3000） |
| 8M（3264x2448） |
| 5M（2560x1920） |
| Video Output | HDMI: Support 1920X1080P60 output With CEC |
| Composite: NTSC/PAL |
| Time Lapse Function | Video: OFF / 1 Seconds / 2 Seconds / 5 Seconds / 10 Seconds / 30 Seconds / 60 Seconds |
| Photo Functions | Auto Shooting ：OFF / 3 Seconds / 5 Seconds / 10 Seconds / 30 Seconds / 60 Seconds |
| Language | English |
| Interface | USB 2.0 : Recharging/File Transfer |
| Power Source | Li-ion rechargeable Battery 850 mAH |
| Accessories | USB Cable, AV Cable |
| Dimensions (W*H*D) | L: 75mm, W: 37.5mm, H:17mm |
| Weight | |
| Support | Mass Storage Driver |
| Windows XP(Service pack 2) or later |
| Mac OS X 10.4.11 or later |
| System Requirements |
| For Windows | *PC with processor better than Pentium 4 3.2GHz |
| *Windows XP(Service pack 2) or later |
| *Minimum 1 GB System RAM |
| *Minimum 256 MB RAM Video Card |
| *USB port, CD-ROM drive |
*1024*768 pixels, 32-bit color display compatible monitor
|
