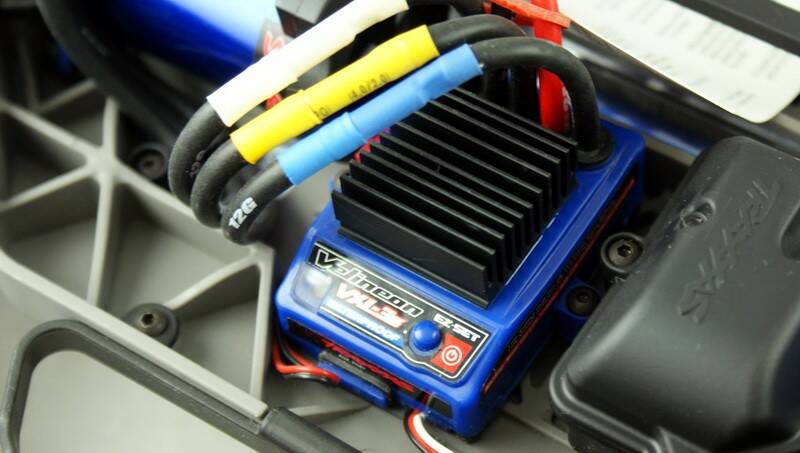

參照說明書提供的規格，這顆電變有支援3S。
特點:
- 自動偵測有刷馬達及無刷馬達
- 支援有感無刷馬達感應線偵測
- 低電壓保護功能
- 支援3S電壓
- 按鈕式開關
- 標準/競賽/訓練模式
- 雙色LED顯示
- 防水設計
- 大型散熱片
- 風扇電源輸出
規格:
Input Voltage: |
| NiCad/NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
LiPo 2-3 Cells (7.4 to 11.1 Volts DC) | Case Size: |
| 39mmW x 55mmD x 33mmH | Weight: |
| 90 grams | Motor Limit (Brushed/Brushless): |
| No motor limit | On Resistance Forward: |
| 0.00075 Ohms | On Resistance Reverse: |
| 0.00075 Ohms | Peak Current - Forward: |
| 320A | Peak Current - Reverse: |
| 320A | Braking Current: |
| 320A | Continuous Current: |
| 200A | BEC Voltage: |
| 6.0 V | BEC Current: |
| 2.5A (with 6-cell NiMH) | Power Wire: |
| 12-Gauge Maxx® Cable | Input Harness Wire: |
| 26 Gauge / 100mm | Transistor Type: |
| MOSFET | Low Voltage Detection: |
| 2-Stage indicators, switchable (on or off) | Thermal Protection: |
| 2-Stage thermal shutdown | Profile selection: |
| Sport Mode:
100% FWD, 100% BRAKES, 100% REV
Race Mode:
100% FWD, 100% BRAKES, NO REV
Training Mode:
50% FWD, 100% BRAKES, 50% REV | Single-Button Setup: |
| Yes, Traxxas EZ-Set® | Battery Input Connector : |
| Traxxas High-Current Connector | Motor Types (Autodetect): |
| Brushed, brushless, sensored brushless
|
|
|
