本帖最後由 co6554 於 2015年4月15日 10:50 PM 編輯

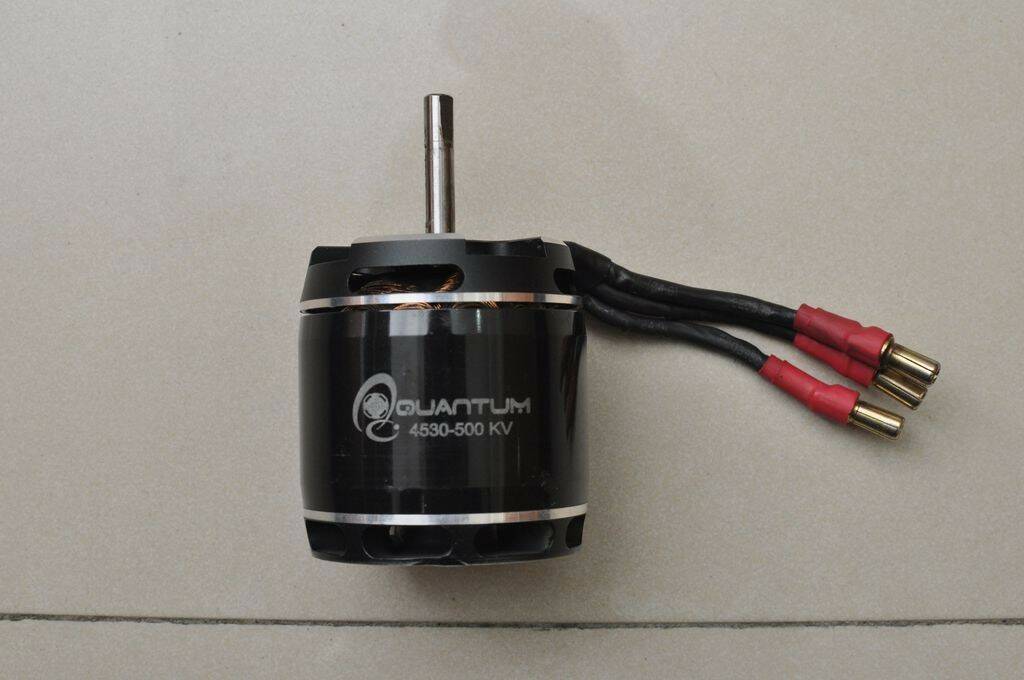

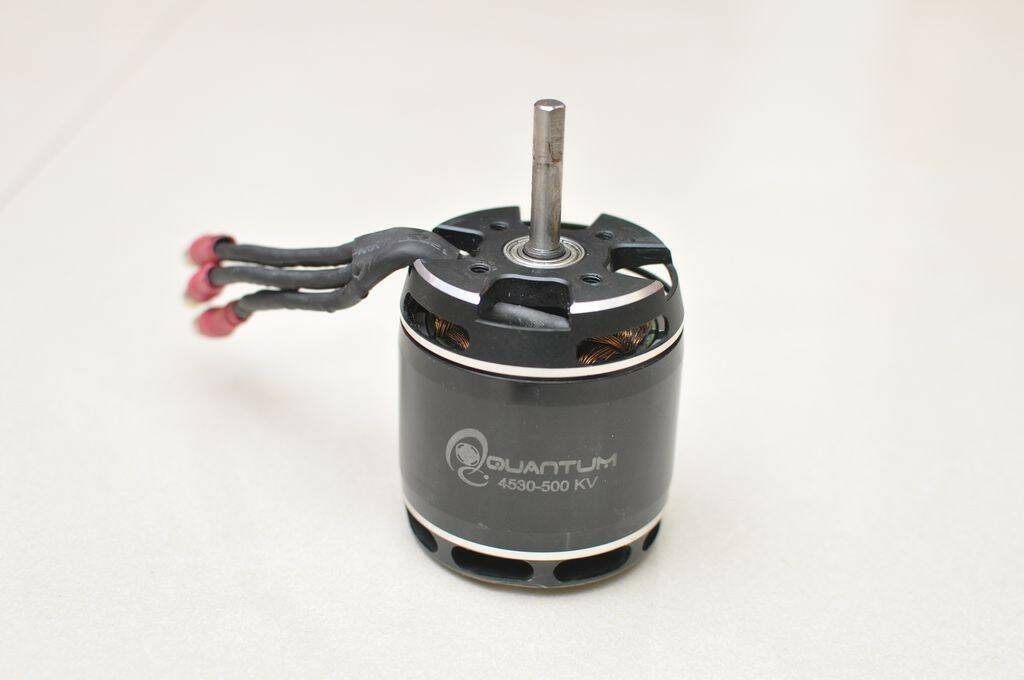

量子馬達
規格與天蠍的4530相當,少飛

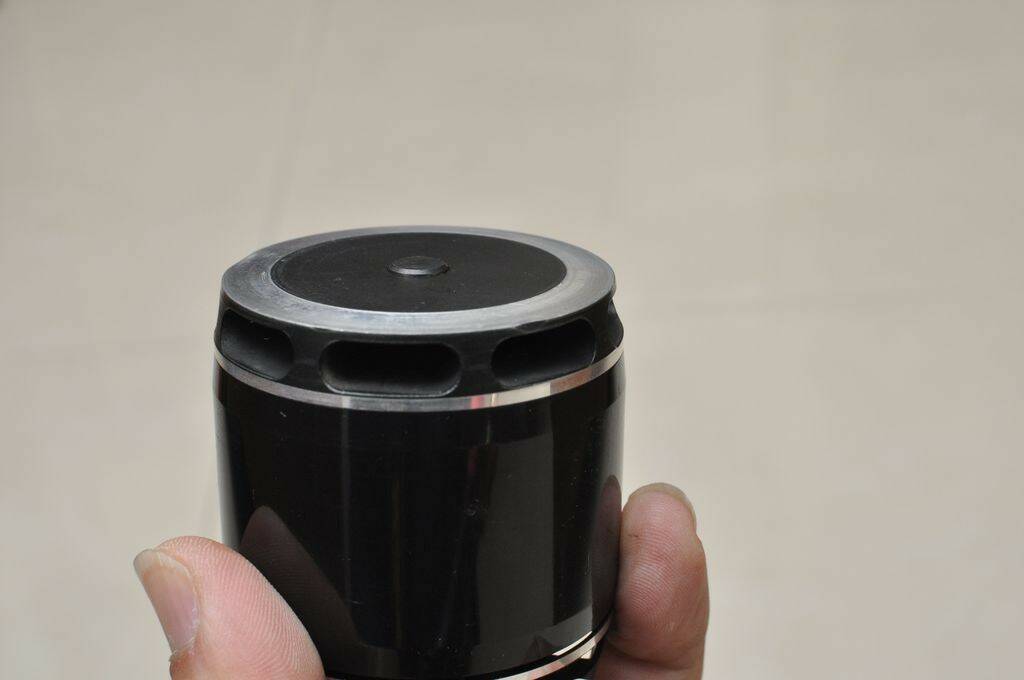

有2個地方有傷,安裝時不小心掉地上,測過沒影響
下面是它的規格
Specifications: | Stator Diameter | 45MM | | Stator Thickness | 30MM | | No. of Magnetic Poles | 10 | | No. of Stator Arms | 12 | | Motor Kv | 500 RPM/Volt | | Max Continuous Current | 125 Amps | | Max Continuous Power | 5000 Watts | | Weight | 556 Grams | | Overall Shaft Length | 102.85mm | | No-Load Current (lo) | 2.0 Amps@10V | | Motor Resistance (Rm) | 0.010 Ohms | | Outside Diameter | 56.8MM | | Shaft Diameter | 8MM to 6MM | | Body Length | 60.7MM | | Bearings | ABEC-3 Bearings (8x16x5) 688ZZ
|
|
|
發表於 2015年4月13日 08:23 PM
