[1400含運] RC4WD R2 V2 波箱 含 35T馬達（全新8T, 16T 齒）

huntsam

站上車友處購入後僅安裝未下土，因車殼關係出讓
近全新，僅有安裝痕跡，要求完美者請勿詢問。

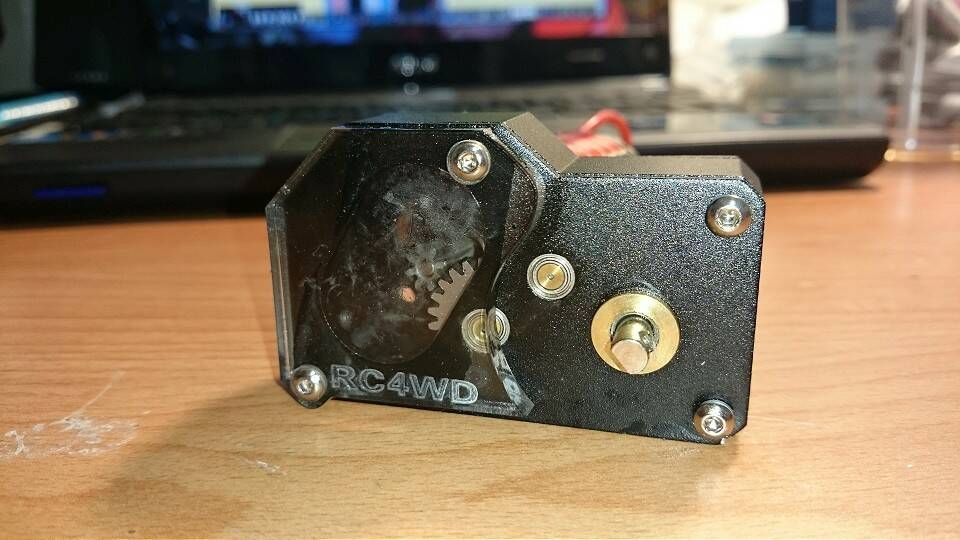

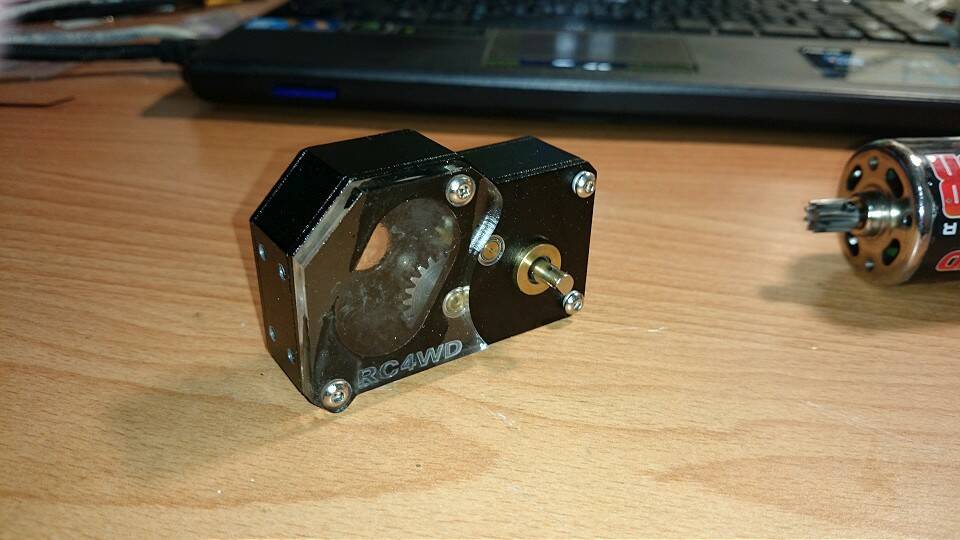

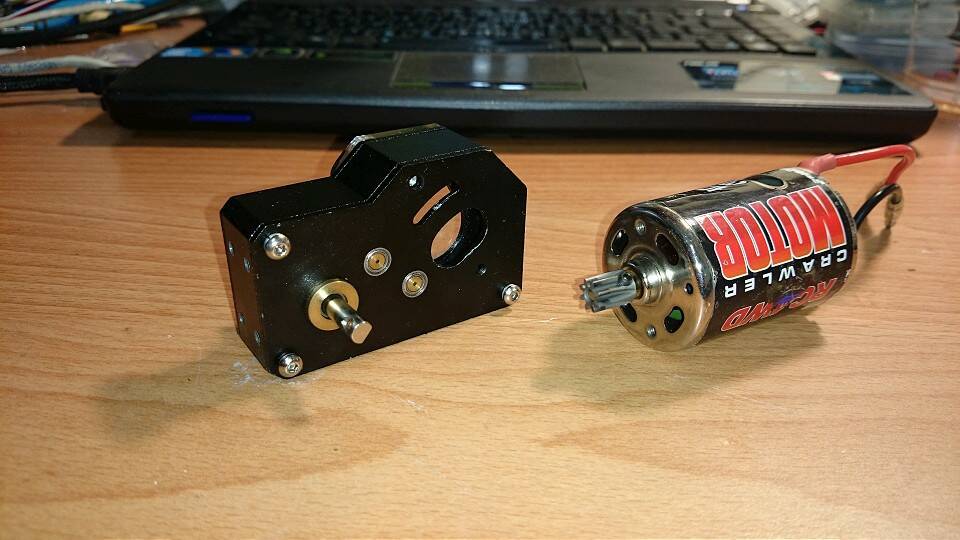

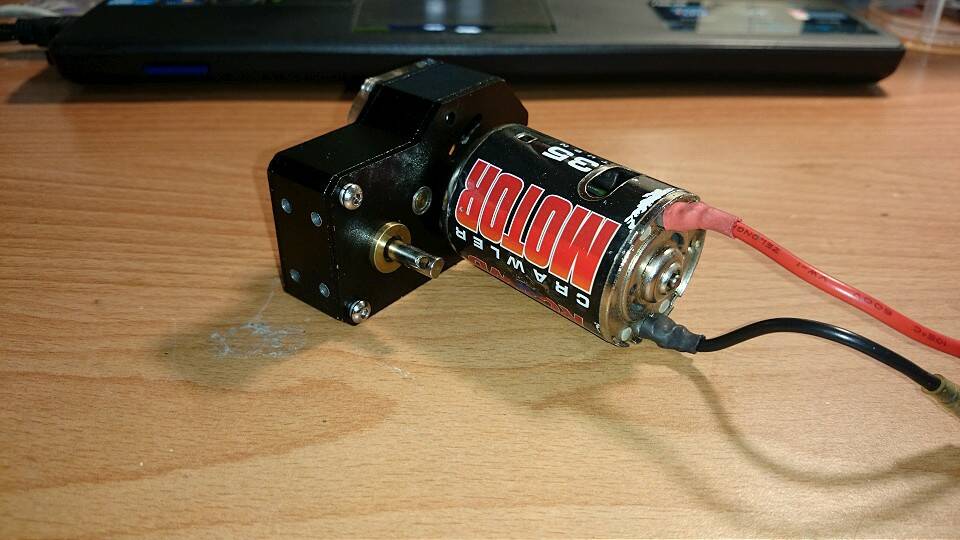

內容物如照片所示：
1. R2波箱
2. RC4WD 35T 碳刷馬達
3. 全新 8T, 16T（鋼齒）馬達齒 （16T未入鏡，屆時會一併附上）


底下為原廠資料( 資料來源：http://store.rc4wd.com/)

RC4WD R2 Black Crawler Transmission

Made for hardcore rock crawler and custom truck builder!

  Check our R2 review on Scale4x4 or Rccrawler! Click here to view a R2 video!

R2 Transmission is engineered for serious rock crawling and off-road conditions. With extremely low gear reduction and 5mm output shaft, it is designed to work with Tamiya TLT-1 axle. With side and bottom mounting holes, this transmission can be mounted on a variety of chassis and platform. Specifications:

• CNC machined billet aluminum housing
• Ultra compact design
• Extremly durable heat treated steel gears
• 5mm steel output shaft
• Support 8T to 20T 32 pitch pinion gears
• Extremely low center CG
• Manufactured & engineered by RC4WD USA
• M3 side and bottom mounting holes
• 10:1 to 30:1 Gear Ratio
• Professionally pre-asssembled
• Flanged metal shield bearings
• Custom made round head stainless steel socket screws
• Output Shaft OD: 0.19" / 5mm
• Height: 45mm (1.77inch)
• Width: 20mm (0.78inch)
• Length: 70mm (2.75inch)
• Weight: Not available yet


R2 Transmission Dimensional Drawing

What's Included:

• 1x RC4WD R2 Black Crawler Transmission
• 1x 8 Tooth pinion gear
• 1x Clear dusk cover


Note: R2 can be installed on TLT-1, but modification will be made on the chassis. R2 is strong enough to even run on TXT-1 size trucks.

Note: One of the output shaft is much longer, it is designed that way so the prop shaft wont hit the motor. You can cut it shorter if you dont need the extra lenght.

Click here to read an article on Scale 4x4 on how to cut the shaft.

Note: We recommend use our Punisher Shaft (Part # Z-U0006)

Gearing : 8T pinion = 30.4:1,  9T pinion =  27.0: 1, 10T pinion = 24.3:1,  11T pinion = 22.1:1,  12T pinion = 20.3:1,  13T pinion = 18.7:1,  14T pinion = 17.4:1,  15T pinion = 16.2:1,  16T pinion = 15.2:1,  17T pinion = 14.3:1, 18T pinion = 13.5:1,  19T pinon = 12.8:1,  20T pinion =  12.2:1

Note: This item was previously part number X-0195. We have updated our part numbers and are sorry for any inconvenience this may cause you.

三洞

我要請pm

huntsam

三洞 發表於 2014年8月19日 01:02 AM
我要請pm

PM您囉。
