This very popular model has just got better. Preorders will start soon and it is due for release in August. More information will be posted once we know more.
Specification
Swashplate: ECCPM(135~140°)
Fuselage Height:385mm
Fuselage Width: 191mm
Fuselage Length:1277mm
Rotor Blade:690~700mm Req’d
Rotor Dia.:1538~1558mm
Tail Blade: 105mm(9.28”) incl’d
Tail Rotor Dia.:280mm
Weight w/o Battery: 2917g
Tail Driven: Torque Tube
Rotor Speed: 2200~2300 RPM
Motor: approx. 510~560KV Dia. : 52mm
ESC: 120A~160A
Gear Ratio (E:M:T): 9.85 : 1: 4.27
Battery: Lipo, 12S (6S x 2) 5Ah, 30C
Battery Dimension: 160 x 50 x 65mm
Features
2014 New Canopy Scheme – Orange/Blue
Improved Autorotation Gears w/Reinforced Rib for More Rigidness
Rounded Vertical Fin w/option Doubler at Leading Edge.

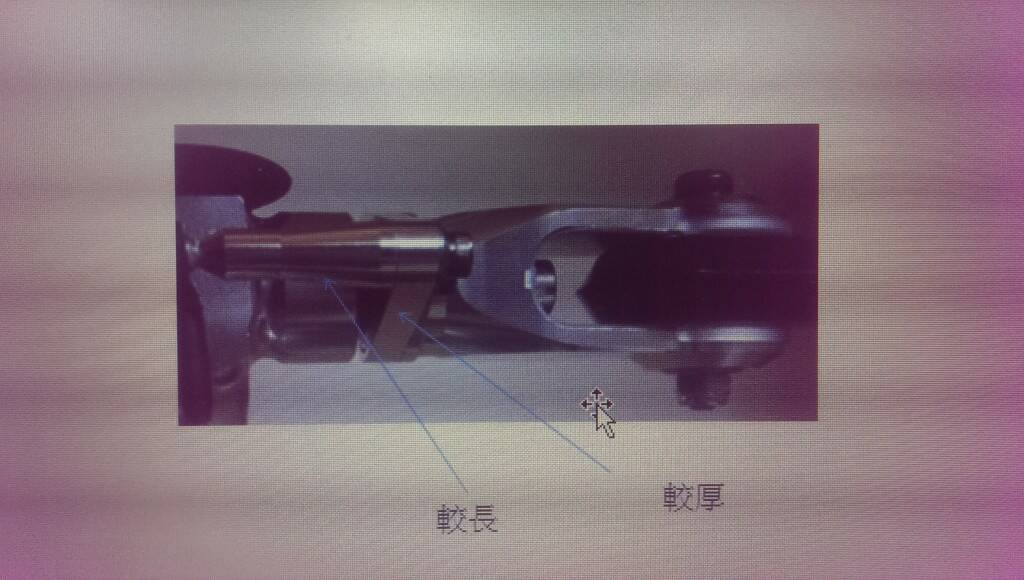

V2 E700 Metal FBL Rotor Grip Set
V2 E700 Main Rotor Grip Posts
V2 E700 Metal FBL Control Lever |
