[1700]2.4G 2.5w 功放.

rctony

2.4G 2.5w 放大器,用不到,需要的請回復,謝謝!

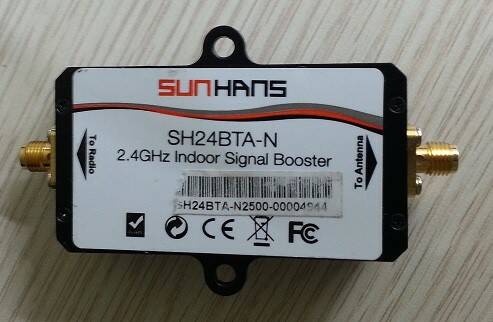

(內容物如圖, 主機+變壓器+天線+說明書; 2.4G連接線要看連什麼設備需自行準備(電子材料行有售,露x也有))

Specifications

Operating Range : 2400~2500 MHz
Operating Mode : Bi-directional, half-duplex, time division duplex senses RF carrier from transmitter and automatically switch receiving to transmitting mode
Connector Type : SMA Receptacle (50 ohm)
Transmit Gain : 13-17dBm
Input Trigger Power  : Min.5dBm, Max.17dBm
Receiver Gain : 8-12dBm
Noise Figure : 3.0dB (typical)
Frequency Response : 1dB over operating range
Power Adaptor : 5~7V /DC 105~240V for AC Adapter
Operating Temp : -40 to +70
Operating Humidity : Up to 95% relative humidity
Material : Cast Aluminum
Product Size : 80*45*15mm
Color Box Size : 188*136*46mm

N.W./G.W : 385/400g

rctony

…………續推。
