Dualsky 兩米飛機用馬達+電變(100A V2版),只飛約10趟(6500)

子淳

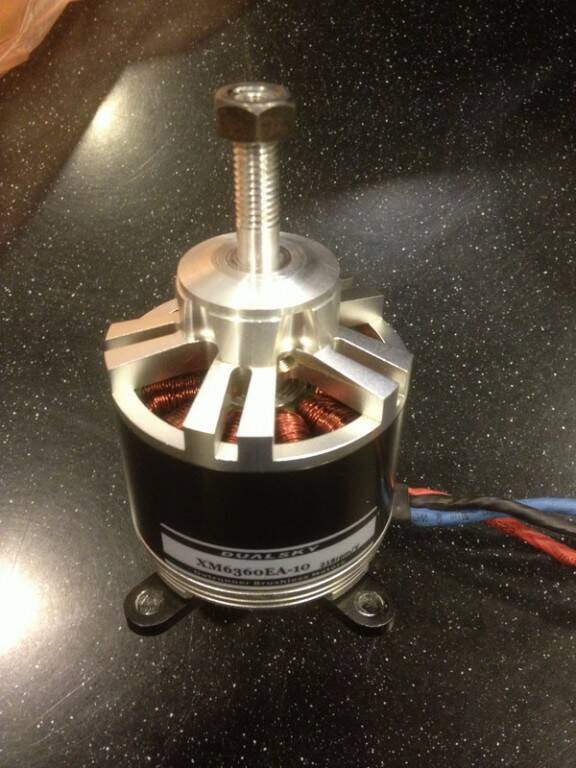

馬達
Description:  XM6360EA-10
KV:   218RPM/V
Alias(Stator diameter, Magnet length):  5330
Weight:  627g
Diameter:  62.4mm
Length:  59 mm
Diameter of Shaft:  8.0mm
Mounting holes pitch:  44/44mm
Slots,Poles:  12,14
Idle Current(Io) @10V:  1.6A
Resistance(Ri):  23 mOhm
Cruising power[8 mins]:  1694W
Bursts current[15s]:  83A
Peak power[15s]:  3081W
Recommended ESC:  XC9036HV
Setup 1(No. of Cell, Prop.):  10S, 20x12
Setup 2(No. of Cell, Prop.):  N/A
Max. weight of sport models:  8.5kg
Max. weight of 3D models:  5.6kg
Memo:  ".140-.160 2-stroke Up to .200 4st"

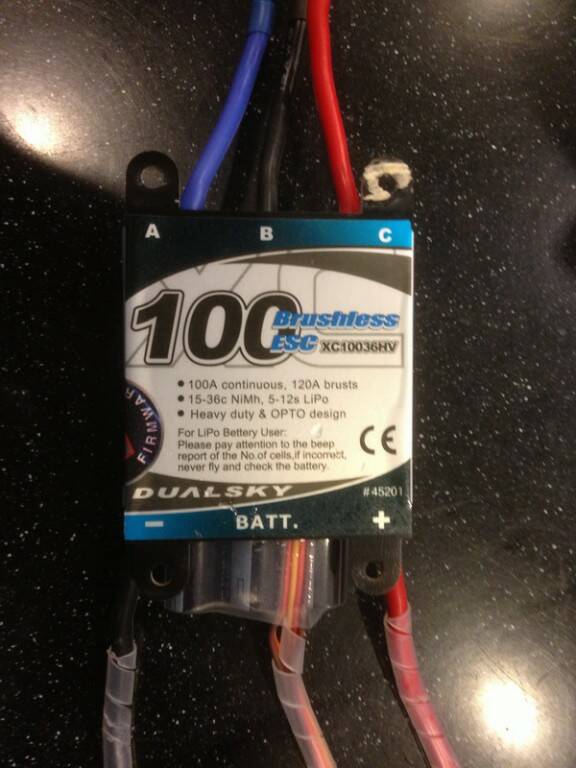

電變:
XC10036HV-V2, 100 amps output, 5-12s Lipo supported, OPTO isolation. Suit for FAI 2 meters F3A or F3C.
