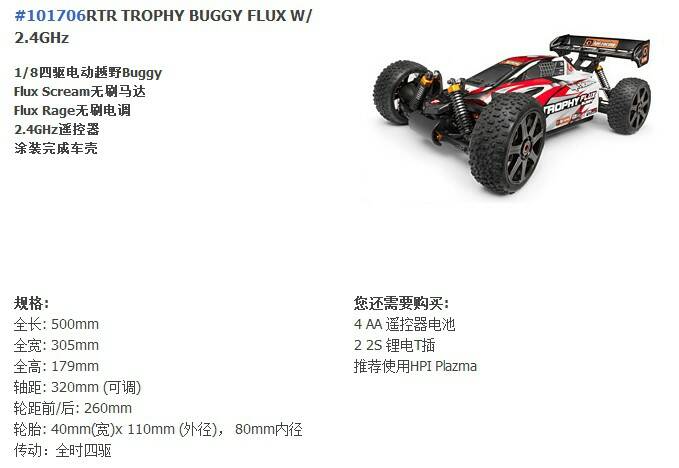

This is the brushless electric powered, 2.4GHz radio controlled, ready to run
1/8 scale Trophy Flux Buggy Racer from HPI.
FEATURES: Chassis: 6061 aluminum 0.16" (4mm) thick with front and rear metal
rod braces
Drive: Four wheel shaft, with steel outdrives and axles
Motor: Flux Scream brushless 1965kV
ESC: Flux Rage, handles two 2S batteries for up to 4S (14.4V) of
power
Radio: 3-channel 2.4GHz with end point adjustment, servo reversing,
steering dual rate, failsafe and waterproof servo for steering
Radio Tray: Low profile aluminum
Differentials: Bevel Gear type with four internal gears for increased
durability
Shocks: Oil-filled, aluminum body
Shock Towers: 6061 aluminum
Suspension: Extra long arms for greater stability and thick
suspension pins for greater resistance against crash damage
Steering: Bellcrank type with cast aluminum knuckles and servo saver
Body: Painted and trimmed
Bumpers: Front plastic
Wheels: Seven spoke 1.6" (41.8mm), 2.4" (60mm) diameter, 17mm hex
Tires: Hot Bodies Proto, 1.6" (40mm) wide, 4.3"(110mm) diameter
Ball Bearings: Full set
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to
the chassis
|
|
