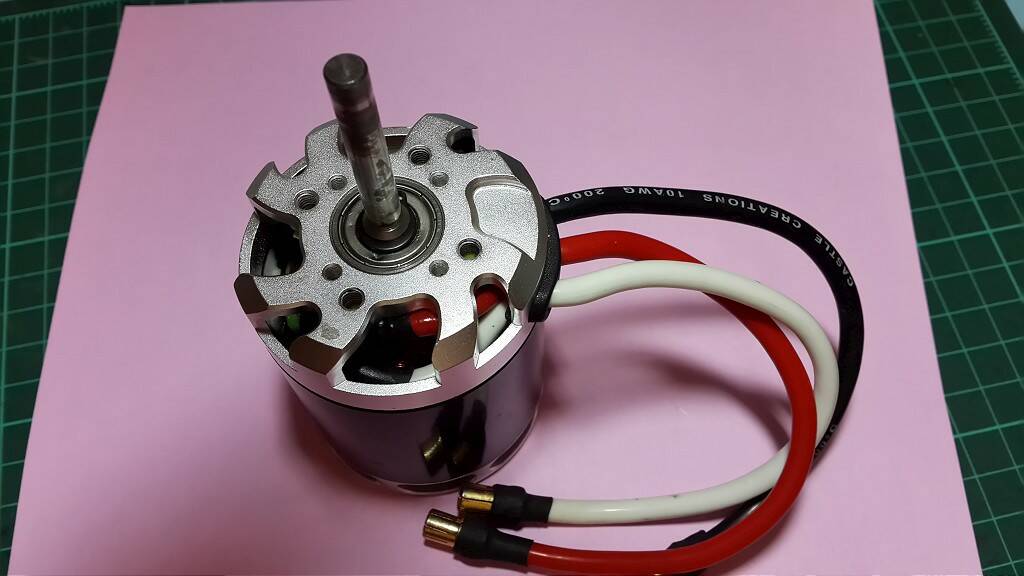

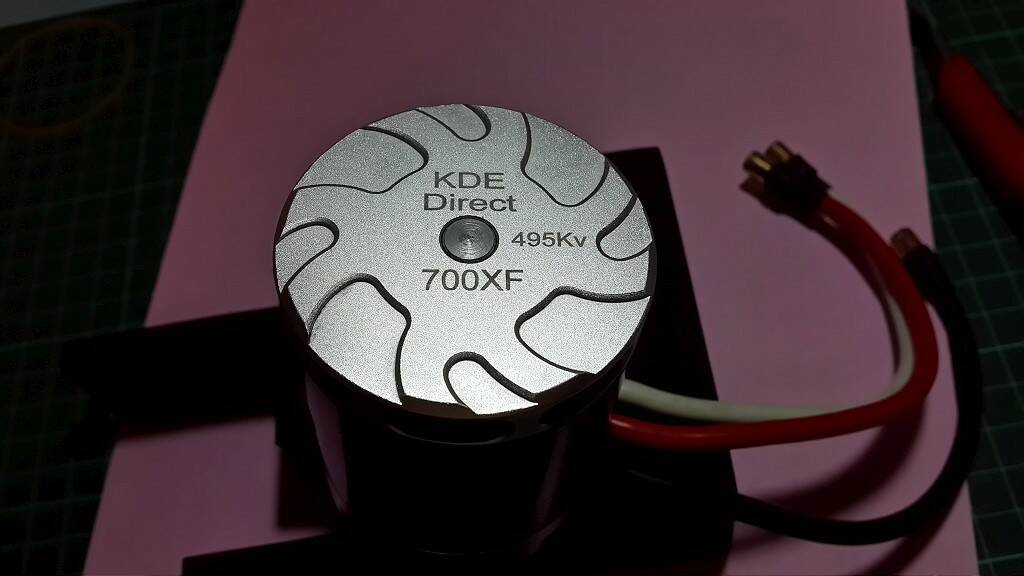

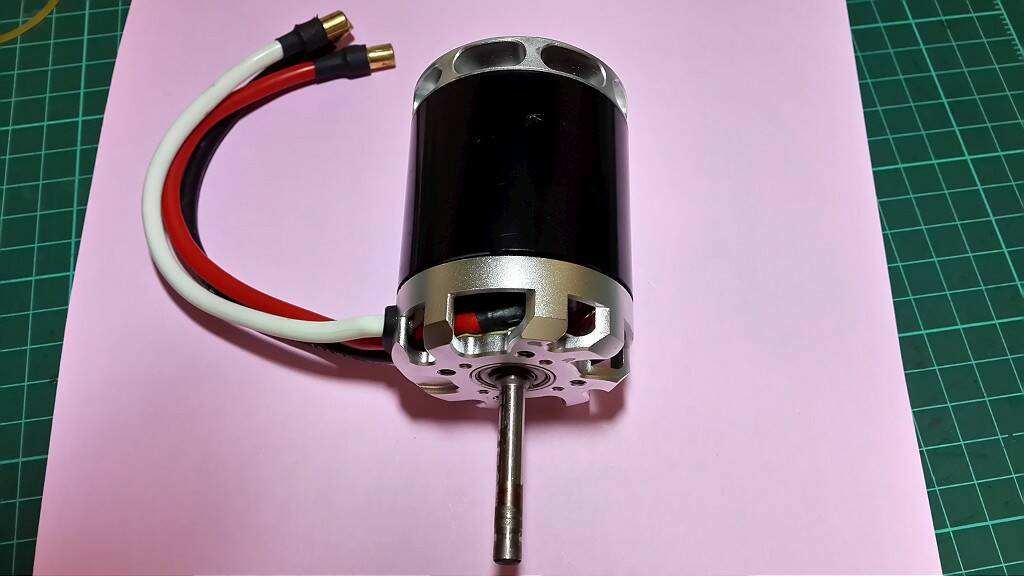

KDE 700FX 495KV 萬瓦馬達
Kv
| 495 RPM/V
| Maximum Current
| 290+ A (2 sec)
| Maximum Power
| 12,750+ W (2 sec)
| Continuous Current
| 156+ A
| Continuous Power
| 6,875+ W
| Maximum Efficiency
| 92%
| Voltage Range
| 37.0 V (10S) - 51.8 V (14S)
| Io (@10V)
| 1.6 A
| Rm (Wind Resistance)
| 0.010 Ω
| Stator Poles
| 12 (12S8P)
| Magnetic Poles
| 8 (12S8P)
|
|
Bearings
| Quad, 698ZZ/MR148ZZ
| Mount Pattern
| M4 x 30 mm, M3 x 25 mm
| Stator Class
| 4541, 2Y
| Shaft Diameter
| 6 mm (8 mm Internal)
| Shaft Length
| 41 mm
| Motor Diameter
| 56 mm
| Motor Length
| 74.5 mm
| Motor Weight
| 645 g (685 g with Wires/Bullets)
| Cooling System
| High-Volume Centrifugal Fan
| Motor Timing
| 5° - 15°
| ESC PWM Rate
| 8 - 12 kHz |
|
|
|
