[1200]FUTABA S9650 數位伺服機

wu5789

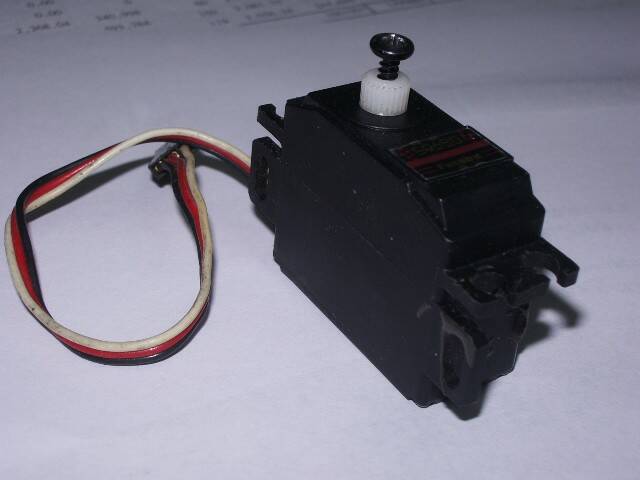

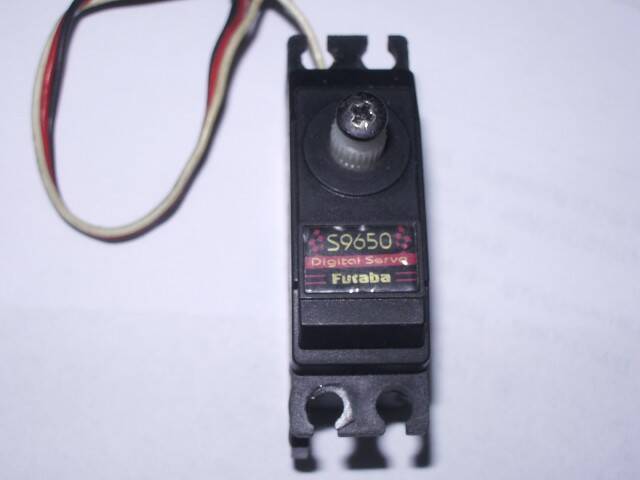

FUTABA S9650 伺服機.功能正常 Control System: +Pulse Width Control 1520usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8-6.0 Volts
Operating Temperature Range: -20 to +60 Degree C
Operating Speed (4.8V): 0.14sec/60 degrees at no load
Operating Speed (6.0V): 0.11sec/60 degrees at no load
Stall Torque (4.8V): 50 oz/in. (3.6kg.cm)
Stall Torque (6.0V): 62.5 oz/in. (4.5kg.cm)
Operating Angle: 45 Deg. one side pulse traveling 400usec
360 Modifiable: Yes
Direction: Counter Clockwise/Pulse Traveling 1520-1900usec
Motor Type: Coreless Motor
Potentiometer Drive: Indirect Drive
Bearing Type: Dual Ball Bearings
Gear Type: All Nylon Gears
Connector Wire Length: 12"
Dimensions: (43 x 15 x 28.6mm)
Weight: .92oz. (26g)

wu5789

推...........................
