德國 Schulze充電器 next 10.36-12 Car (交換)

rctony

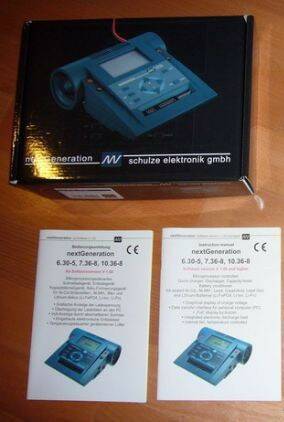

德國 Schulze頂級充電器 next 10.36-12 Car (95新,有含溫控線,已升級至官網最新版韌體,無平衡線), 當時國外購入$28000. (交換物品  遙控車, 摺疊腳踏車, iPhone4S, iPAD2, mini iPAD, note 10.1, GOPRO 3 ,如要購買價錢好談~! 0929-587-789
規格如下:
NextGeneration type
next 10.36-12
Weight about        830 g
850 g
Size (w / d / h) about        160*180*67 mm
Colour of the case        anthracite
Internal fan        12 V / 7 W /
55 dBa
Serial port (included)        5 V SIO
Optional available in-/outputs        included
USB + temperature sensor + blinking light + fan
Supply voltage range        10.0 - 15.0 V
Under voltage warning        11.6 - 10.4 V
- adjusting range
Under voltage warning        0.5 V
- cut off below warning
Supply current up to (about)        25 A
Quiescent current about ...        100 mA
+ current LCD-illumin. (disconnectable, about)        50 mA
Trickle charge currents Ni-Cd        Trickle pulses
Trickle charge currents other battery types        no
Adjustable Lithium voltages        yes
(for full / empty)
Password protected owners name        yes
User setted charge/discharge configurations        yes


Battery 1 Output - Charge circuit        next 10.36-8
Number of voltage measuring inputs        8
Ni-Cd / Ni-MH-batteries
cell-count @ 1.65V        1*-36 cells
(Nickel-cell)
max. battery capacity Ni-Cd        0.1 - 5.0 Ah
max. battery capacity Ni-MH        0.1 - 10.0 Ah
Lead / Li-Fe / Li-Io / Li-Po batteries
Number of balancing inputs/outputs        8
12
Max. balancing current        1:00 AM
Number of Li-Po cells        14 cells
Number of Li-Io cells        14 cells
Number of Li-Fe cells        16 cells
Number of Lead cells        23 cells
Max. battery capacity in mAh        0.1 - unlimited
Charge power        next 10.36-8
@ charge voltages
next 10.36-12
Charge power @ 12V        240 W
car battery voltage about
Charge current @ 1-24V        10.0 A
(~1-15 Ni-/~1-6Li-cells) about
Charge current @ 30V        8.0 A
(~18 Ni-/~7 Li-cells) about
Charge current @ 40V        6.0 A
(~24 Ni-/~9 Li-cells) about
Charge current @ 45V        5.3 A
(~27 Ni-/~11 Li-cells) about
Charge current @ 50V        4.8 A
(~30 Ni-/~12-Li-cells) about
Charge current @ 60V        4.0 A
(~36 Ni-/~14 Li-cells) about
Battery 1 output        next 10.36-8
- discharge circuit
next 10.36-12
Cell count (@ 1.30 V/Ni- /        1-40 Ni-cells
4,00 V/Li-cell)        1-14 Li-cells
Discharge power about        240 W
@ 12 V car battery voltage
Discharge current @ 1-24 V        10.0 A
(~1-18 Ni-/~1-6 Li-cells) about
Discharge current @ 32 V        7.5 A
(~24 Ni-/~8 Li-cells) about
Discharge current @ 36 V        6.7 A
(~27 Ni-/9 Li-cells) about
Discharge current @ 40 V        6.0 A
(~30 Ni-/~10 Li-cells) about
Discharge current @ 49 V        4.9 A
(~36 Ni-/~12 Li-cells) about
Discharge current @ 54 V        4.4 A
(~40 Ni-/~14 Li-cells) about
Max. discharge power when connected to a fully charged car battery or to an AC/DC power supply        100 W




Battery 2 output - charge circuit
next 10.36-12
Ni-Cd / Ni-MH batteries
cell count (@ 1.65V / cell)        1*-6 cells
Charge current ~        0.1 - 5 A
Charge power @ 13,8 V car batt. & 12V output 2 about        60 W
Max. battery capacity Ni-Cd        0.1 - 2.5 Ah
Max. battery capacity Ni-MH        0.1 - 5.0 Ah
Lead / Li-Fe / Li-Io / Li-Po batteries
Number of balancing inputs/outputs        0
Li-Po cell count        1 - 2/3**cells
Li-Io cell count        1 - 2/3**cells
Li-Fe cell count        1 - 3 cells
Lead cell count        1 - 4/5** cells
Max. capacity mAh        0.1 - unlimited

rctony

..................推,繼續換! 可換遙控車(電車).

rctony

.................推,繼續換! 可換遙控車(電車).

GuoLiang

我有臺小E全套含控及備品！
有興趣嗎？

rctony

GuoLiang 發表於 2013年11月8日 11:35 PM
我有臺小E全套含控及備品！
有興趣嗎？

您好,麻煩貼圖參考一下(比例1/?),謝謝~

GuoLiang

rctony 發表於 2013年11月9日 07:17 PM
您好,麻煩貼圖參考一下(比例1/?),謝謝~

有line嗎？我傳給你！
