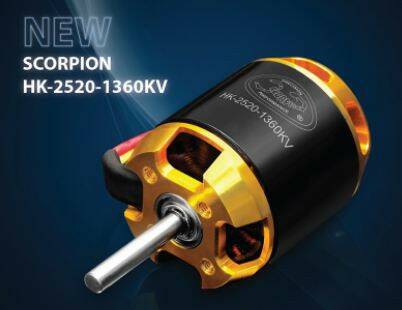

<DKCK>天蠍星Scorpion HK-2520-1360Kv搭配Compass Warp 360

DKCK

WARP 360 搭配 Scorpion HK-2520
https://www.youtube.com/watch?feature=player_embedded&v=WtapJNjQHcQ

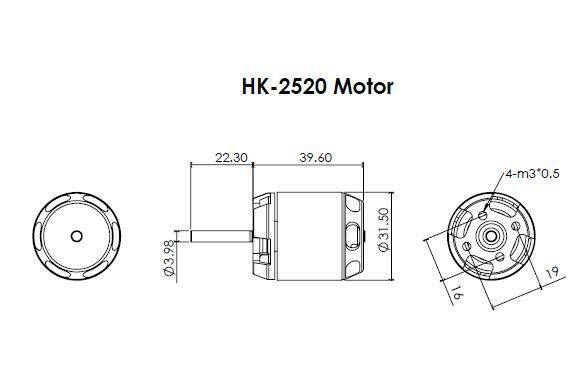

Specifications

Stator Diameter	25.0 mm (0.98 in)
Stator Thickness	20.0 mm (0.79 in)
No. of Stator Arms	12
Magnet Poles	10
Motor Wind	12 Turn Delta
Motor Wire	9-Strand 0.25mm
Motor Kv	1360Kv RPM/Volt
No-Load Current (IO/10V)	1.55 Amps
Motor Resistance (Rm)	0.038 Ohms
Max Continuous Current	30 Amps
Max Continuous Power	630 Watts
Weight	108 Grams (3.78 oz)
Outside Diameter	31.5 mm (1.24 in)
Shaft Diameter	4 mm (0.15 in)
Body Length	39.6 mm (1.56 in)
Overall Shaft Length	62.5 mm (2.46 in)
Max Lipo Cell	6s
Max Peak Current	40A (2 seconds)
Max Peak Power	840 Watts (2 seconds)
Motor Timing	5deg
Drive Frequency	8kHz

[ 本帖最後由 DKCK 於 2013年2月10日 08:26 PM 編輯 ]
