MKS BLS980 窄頻尾伺服機

wuwu1812 · 發表於 2012年5月3日 10:29 PM

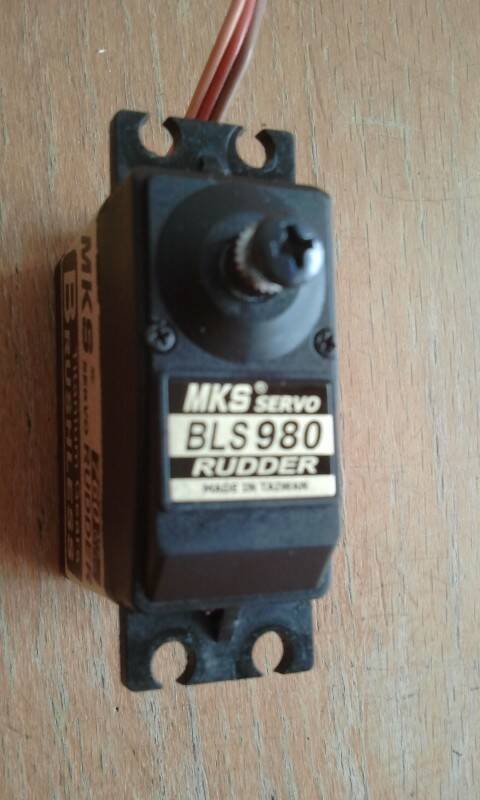

MKS BLS980 窄頻尾伺服機

Dead band:  0.0004ms (Default)
Control System:  +Pulse Width Control
Working frequence:  760μs / 560hz
(RX) Required Pulse:  3.5 ~  6.0 Volt Peak to Peak Square Wave
Operating Voltage:  4.0 ~  6.0 V DC Volts
Operating Temperature Range:  -10 to + 60 Degree C
Operating Speed (4.8V):  0.04 sec/60° degrees at no load
Operating Speed (6.0V):  0.03 sec/60° degrees at no load
Stall Torque (4.8V):  2.5 kg.cm  (34.7 oz/in)
Stall Torque (6.0V):  3.1 kg.cm  (43.0 oz/in)
360° Modifiable: NO
Motor Type: Brushless Motor
Potentiometer Drive:  Indirect Drive
Bearing Type:  Dual Ball Bearings
Gear Type:  Titanium Gears
Programmable:  NO  　
Connector Wire Length:  24.0 cm  (9.40 in)
Dimensions:  40 x 20 x 40 mm          ( 1.57x0.79x1.50 in)
Weight: 58.0 g  (1.97 oz)
