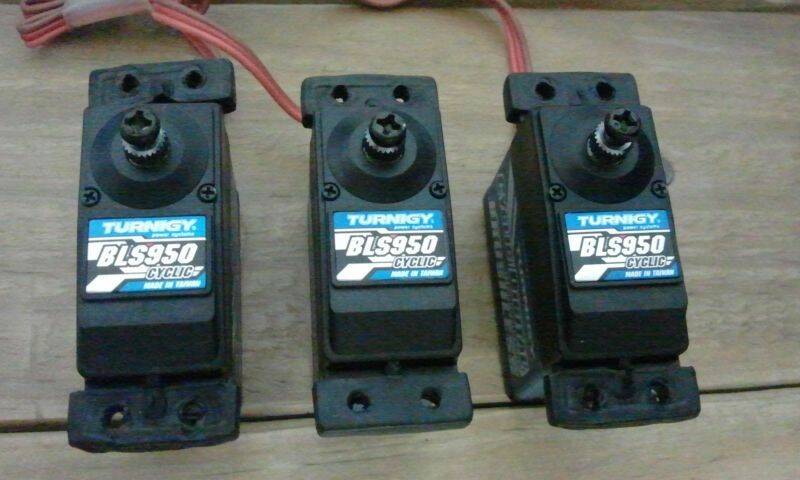

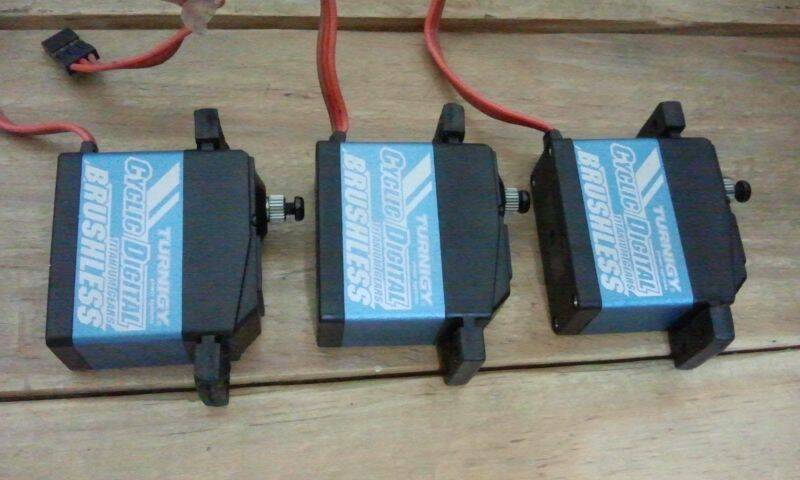

TURNIGYBLS950無刷伺服機3顆(與MKS同級)

wuwu1812 · 發表於 2012年4月29日 07:49 PM

1. Dead band: 0.0008ms (Default) 2. Control System: +Pulse Width Control3. Working frequency: 1520μs / 333 Hz 4. (RX) Required Pulse: 3.5 ~ 6.0 Volt Peak to Peak Square Wave5. Operating Voltage: 4.0 ~ 6.0 V DC Volts6. Operating Temperature Range: -10 to + 60 Degree C7. Operating Speed (4.8V): 0.14 sec/60° degrees at no load8. Operating Speed (6.0V): 0.12 sec/60° degrees at no load9. Stall Torque (4.8V): 9.2 kg/cm (127.8 oz/in)10. Stall Torque (6.0V): 11.5 kg/cm (159.7 oz/in)11.360° Modifiable: NO 12. Motor Type: Brushless Motor13. Potentiometer Drive: Indirect Drive 14. Bearing Type: Dual Ball Bearings15. Gear Type: Titanium Gears16.Programmable: NO17. Connector Wire Length: 24.0 cm (9.4 in)18. Dimensions: 40 x 20 x 40 mm (1.57x0.79x1.50 in)19. Weight: 55.8 g (1.96 oz)MKS 950 Brusless Servos remote control model4.8V:34.7 oz-in (2.50 kg-cm)6.0V:43.1 oz-in (3.10 kg-cm)4.8V:0.04 sec/60°6.0V:0.03 sec/60°同MKS 950

[ 本帖最後由 wuwu1812 於 2012年5月15日 06:35 PM 編輯 ]

wuwu1812 · 發表於 2012年4月30日 09:49 AM
