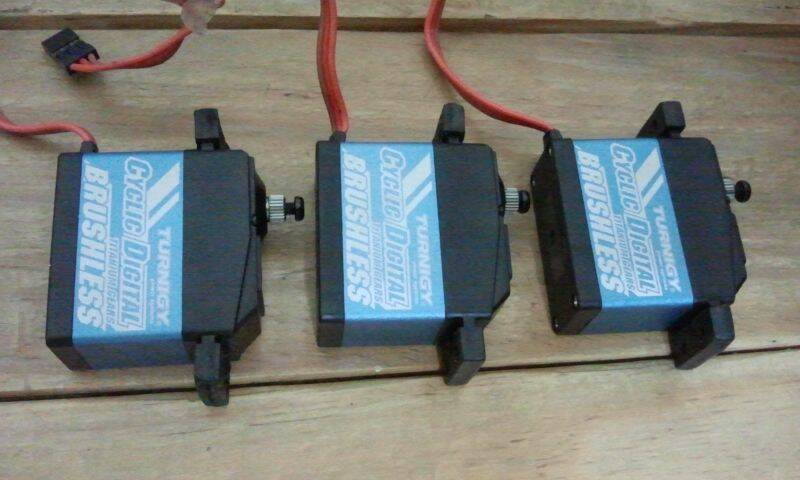

TURNIGY BLS950無刷伺服機CCPM*3顆(同MKS等級)

wuwu1812 · 發表於 2012年4月22日 10:15 PM

1. Dead band: 0.0008ms (Default)
2. Control System: +Pulse Width Control
3. Working frequency: 1520μs / 333 Hz
4. (RX) Required Pulse: 3.5 ~ 6.0 Volt Peak to Peak Square Wave
5. Operating Voltage: 4.0 ~ 6.0 V DC Volts
6. Operating Temperature Range: -10 to + 60 Degree C
7. Operating Speed (4.8V): 0.14 sec/60° degrees at no load
8. Operating Speed (6.0V): 0.12 sec/60° degrees at no load
9. Stall Torque (4.8V): 9.2 kg/cm (127.8 oz/in)
10. Stall Torque (6.0V): 11.5 kg/cm (159.7 oz/in)
11.360° Modifiable: NO
12. Motor Type: Brushless Motor
13. Potentiometer Drive: Indirect Drive
14. Bearing Type: Dual Ball Bearings
15. Gear Type: Titanium Gears
16.Programmable: NO
17. Connector Wire Length: 24.0 cm (9.4 in)
18. Dimensions: 40 x 20 x 40 mm (1.57x0.79x1.50 in)
19. Weight: 55.8 g (1.96 oz)
MKS 950 Brusless Servos remote control model
4.8V:34.7 oz-in (2.50 kg-cm)
6.0V:43.1 oz-in (3.10 kg-cm)
4.8V:0.04 sec/60°
6.0V:0.03 sec/60°
同MKS 950

wuwu1812 · 發表於 2012年4月24日 03:18 PM
