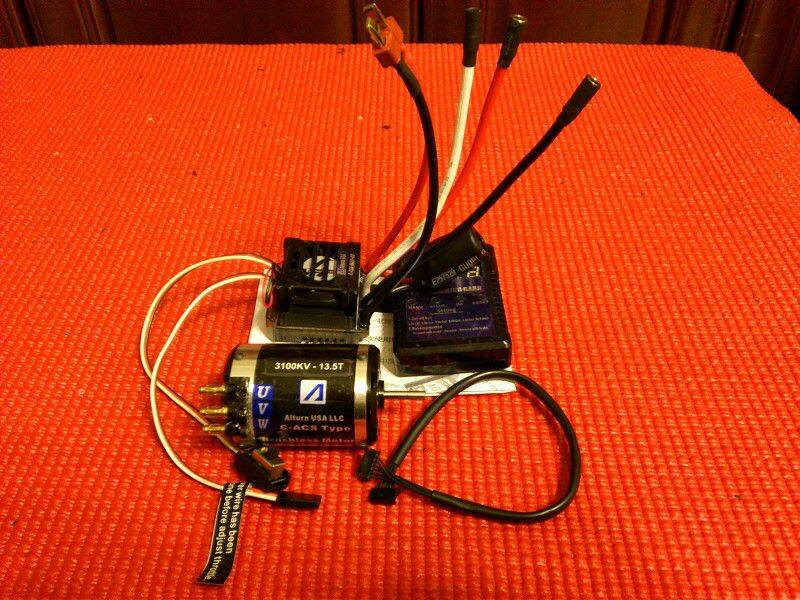

美國Alturn USA車用有感無刷馬達組

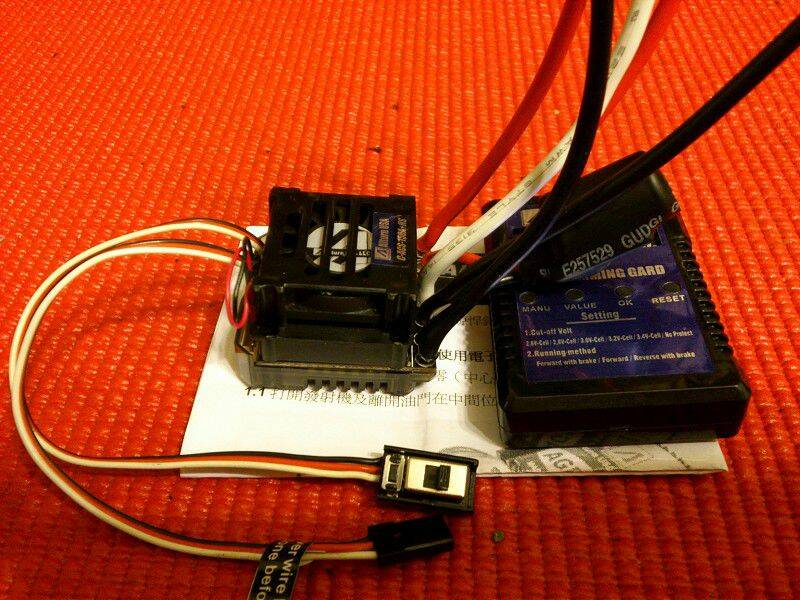

新版150a有感無刷電變(全新品),此為新版(有保護蓋),線性更佳!含設定卡!

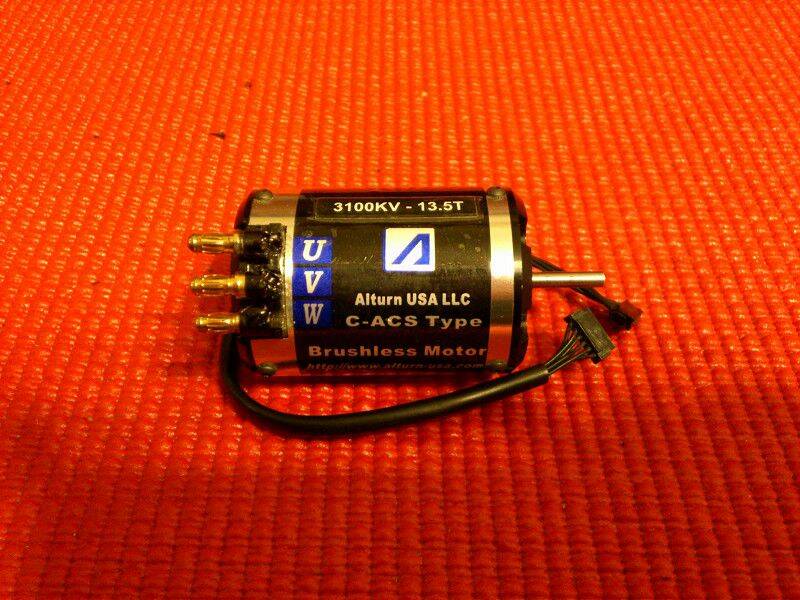

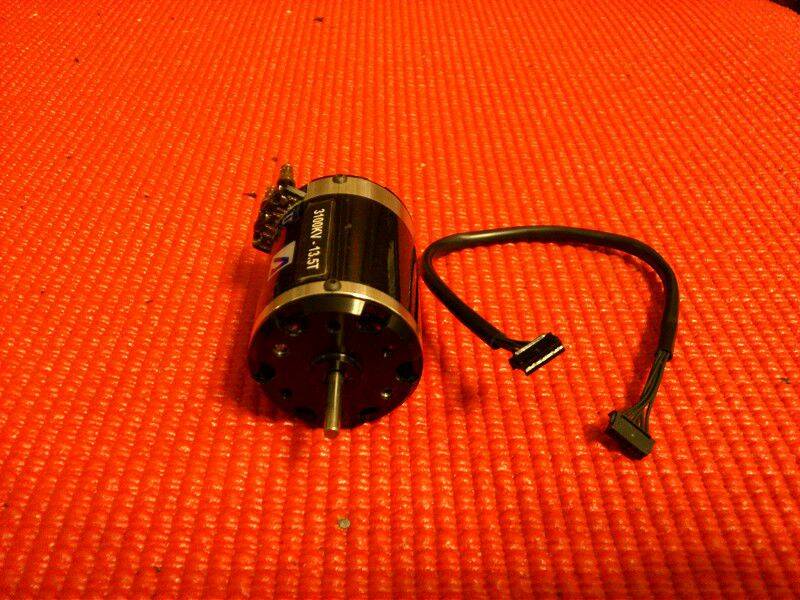

有感無刷馬達13.5t(3100kv),含感應線!
當時買2組,因大腳車賣掉,所以現在出清1組! 電變全新,馬達約九成新!
新版電變+設定卡,1500元含運!
馬達+感應線,900元含運
合購2200元含運! (網路價3999元)
意者請pm或電洽0921-708498 龍仔
C-ACS-150A+HS (Sensor / Sensorless)(Heat Sink)(Fan)
| Nominal current
| Maximum continues current 150Amp, peak 360Amp 10 second.
| Main IC Control
| Atmel IC (1024 DPI)
| Operating voltage:
| Maximum 3 Lipo (11.4V)
| Quiescent current:
| 1.4 [mA]
| Voltage BEC:
| 6.0V / 4.5A
| Current Max BEC:
| 5.0 [A]
| Continuous BEC
| 4.5 [A]
| Resistance in conducting state:
| 2 x 1.25 [mΩ]
| Dimensions:
| 35 x 42 x 37
| Weight:
| 40g (w/ heat sink)
| Cable cross - section (input / output)
| 4/2,5 mm2
| Cable Material
| Silicon FT1 105°C at 600V
| Number of power transistors:
| 150A Power MOS-FET
| Input capacitance:
| Double-Dual 470 μF
|
C-ACS-540-KV3100 (Timing Adjustable / NMB Super High Speed BB)
| Input Voltage (cells)2
| 4-7Ni-Cd /2S LiPo
| Operation Degree
| -40 ~ 160 degree
| <?xml:namespace prefix = st1 ns = "urn:schemas-microsoft-com:office:smarttags" />Watts
| 242W
| U/min @ 7.4V
| 29580
| KV/RPM
| 3100KV
| Weight:
| 151g including wire
| Strom [A]
| 31.4A
| Efficiency:
| 95%
| Shaft:
| 3.14mm / 0.125oz
| Magnet Material
| NdFeD High Torque Magnet
| Magnet Outside Diameter
| 21.0mm
| Ball Bearing
| Japan NMB Super High Speed Ball Bearing
| Dimension:
| 36.0 x 51.3mm
| Timing Adjustable Unit
| 5 Unit
|
[ 本帖最後由 dragon6592 於 2012年2月17日 03:19 PM 編輯 ] |
|
發表於 2012年2月17日 09:18 AM
