Props Drilling Jig 4S
Engine: DA50, DL50, DLE55, EVO 54
Mounting: 4 Hole
hole circle: 30mm
weight: 105g
Drill : 5.1mm Includ
Material
jig(Gold): AL6061 (anodized)
Rotation prevention Pin(Red): AL6061 (anodized)
Drill Holders(Silver): SKD11 (heat treatment)
Prop drill jig for 4 bolt fixing comes with drill guide locking peg and drill bit.Hand held drill can be used as drill guide keeps drill straight no need for a pillar drill .
Instructions
Step 1: insert jig into the hole to the propeller
Step 2: After inserting jig, drill the first hole using the silver drill guide
Step 3: Place rotation prevention pin (red) into the drilled hole
Step 4: Drill the remainder of the holes using the drill guide.
特價：1200元

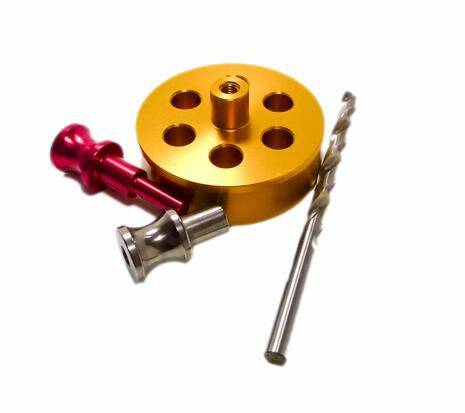

Props Drilling Jig 6M
Engine: DA100、DL100、DLE111、3W100、DA85、MVVS58、3W55、3W50、EVO58
Mounting: 6 Hole
Hole circle: 29mm
weight: 101g
Drill : 5.1mm Includ
Material
jig(Gold): AL6061 (anodized)
Rotation prevention Pin(Red): AL6061 (anodized)
Drill Holders(Silver): SKD11 (heat treatment)
Prop drill jig for 6 bolt fixing comes with drill guide locking peg and drill bit.Hand held drill can be used as drill guide keeps drill straight no need for a pillar drill .
Instructions
Step 1: insert jig into the hole to the propeller
Step 2: After inserting jig, drill the first hole using the silver drill guide
Step 3: Place rotation prevention pin (red) into the drilled hole
Step 4: Drill the remainder of the holes using the drill guide.
特價：1200元
Props Drilling Jig 6L
Engine: 3W157、DA150、3W85(NEW)、EVO 80/150、DLE170、DLE222
Mounting: 6 Hole
Hole circle: 34mm
weight: 101g
Drill : 4.3mm Includ
Material
jig(Gold): AL6061 (anodized)
Rotation prevention Pin(Red): AL6061 (anodized)
Drill Holders(Silver): SKD11 (heat treatment)
Prop drill jig for 6 bolt fixing comes with drill guide locking peg and drill bit.Hand held drill can be used as drill guide keeps drill straight no need for a pillar drill .
Instructions
Step 1: insert jig into the hole to the propeller
Step 2: After inserting jig, drill the first hole using the silver drill guide
Step 3: Place rotation prevention pin (red) into the drilled hole
Step 4: Drill the remainder of the holes using the drill guide.
特價：1200元
有興趣者，歡迎與我連絡0912-278833施先生
