【童愛店舖】韓國SECRAFT模型精品配件Prop Acc DLE-30鑽孔器

cute969211

Engine: DLE30
Mounting: 4 Hole
hole circle: 26mm
weight: 105g

Drill : 4.3mm Includ

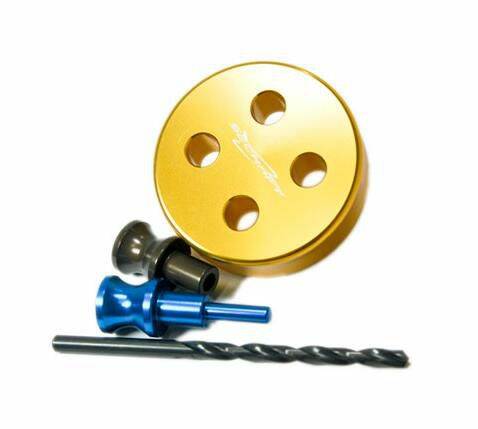

Material
jig(Gold): AL6061 (anodized)
Rotation prevention Pin(Blue): AL6061 (anodized)
Drill Holders: 7075 (Hard coating)

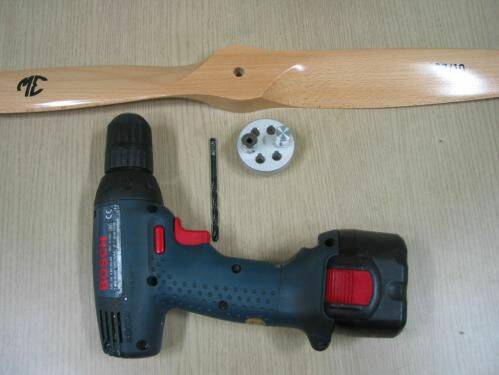

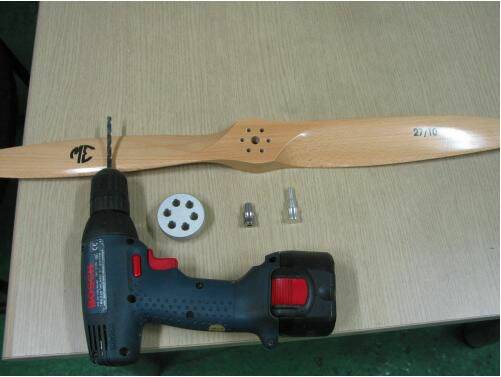

Prop drill jig for 4 bolt fixing comes with drill guide locking peg and drill bit.Hand held drill can be used as drill guide keeps drill straight no need for a pillar drill .

Instructions
Step 1: insert jig into the hole to the propeller

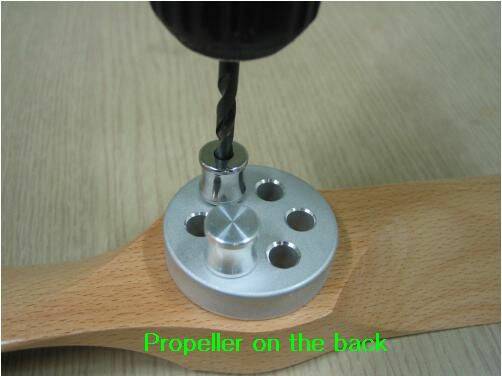

Step 2: After inserting jig, drill the first hole using the silver drill guide
Step 3: Place rotation prevention pin (red) into the drilled hole
Step 4: Drill the remainder of the holes using the drill guide.
特價：1200元

預計４月１０日到貨

有興趣者，歡迎與我連絡0912-278833施先生

[ 本帖最後由 cute969211 於 2011年9月11日 10:57 PM 編輯 ]
