高級碳纖版，包含主翼管、尾翼管、尾輪組、腳架、機鼻罩，以上均為碳纖。

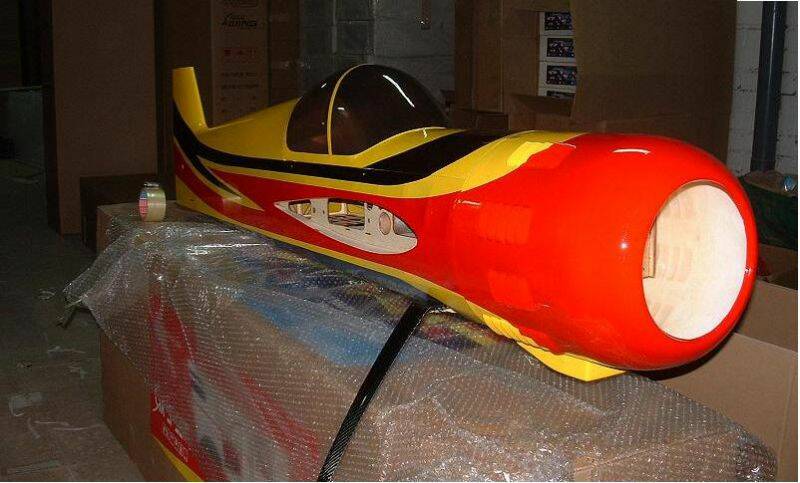

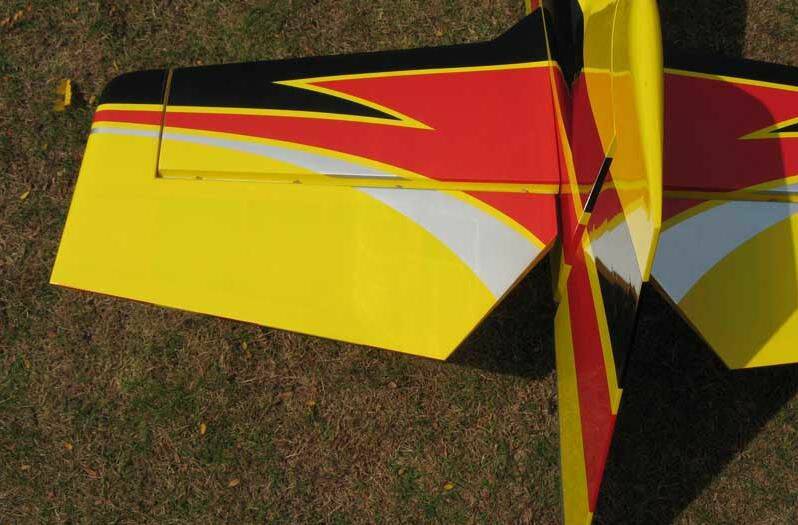

德國高級燙紙，碳纖槳罩孔已開好，全機舵面已經粘好，方向舵可拆式，油箱也已經裝好，方向舵拉線也裝好了~整機幾乎已經做好三分之一了，回去只需裝電裝與引擎就OK了~~完成度極高。 YAK55SP-100CC SPECIFICATIONS: Scale
:33% Wing Span
:102-1/4 inches(2.6m) Length
:Including spinner 94 inches (2.39m) Wing Area
:1940sq.in.(125.2 sq.dm.) Flying Weight:23 to 27 lbs (10.5-12.3kg) Spinner
:4.5"(114mm) Engine
:80cc to 110cc Gas Radio
:6 to 9 servos Servos
: 6 to 9 servos required 180 oz to 330 oz
(11-20kg-cm)

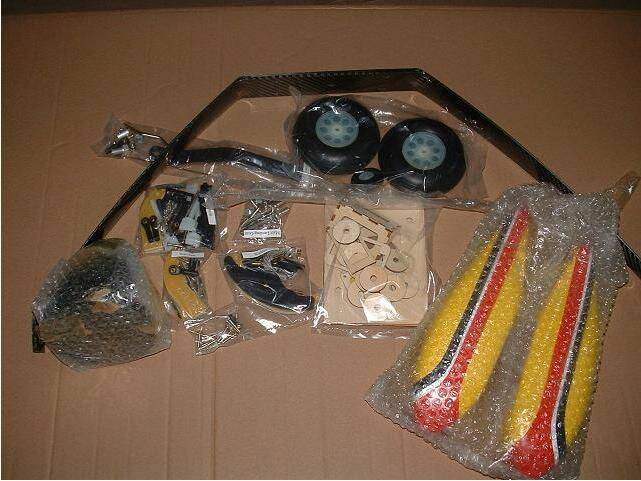

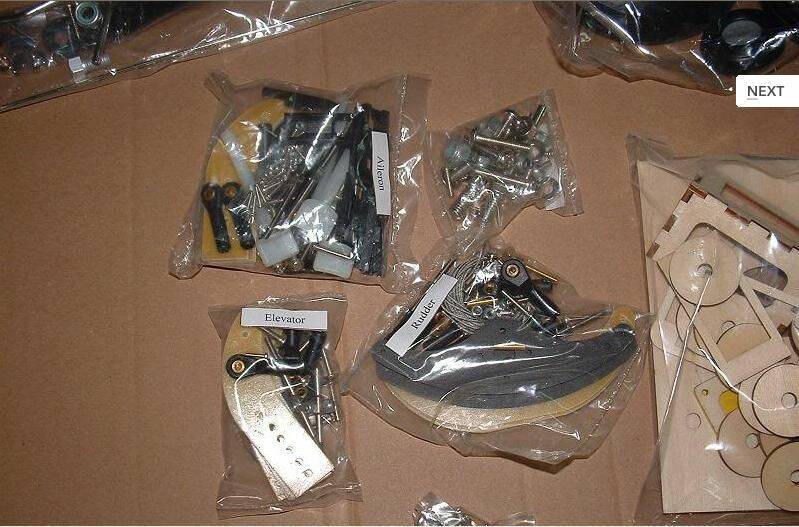

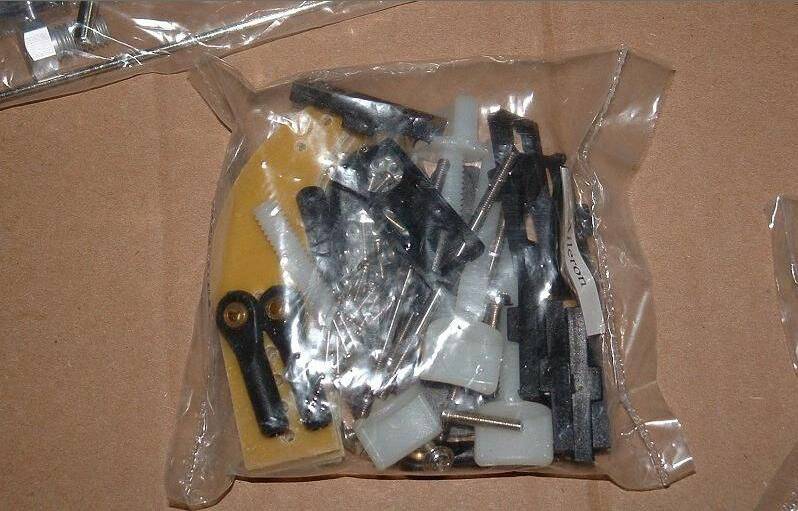

FEATURES: 1. Fuselage and Wing incorporate carbon fiber laminations for extra strength 2. Aerofoiled Carbon Fiber Landing Gear 3. Carbon Fiber Wing and Stab Tubes 4. Carbon Fiber Tail Wheel Assembly 5. Extra strength fibre control Horns 6. Anodized Aluminium Spinner 7. Anodized Extra Length Heavy Duty Servo Arms 8. Extension Lead Safety Clips 9. High Density Rubber Wheels 10. Top Quality Heavy Duty Hardware including Titanium Pushrods 11. Pre-hinged Control Surfaces 12. Pre-assebled and mounted Gas Tank 13. Installed Servo Wire Guide Tube 14. Covered in Genuine Ultracote / Oracover 15. Complete and Detailed Instructions on CD
