前幾天買的 2.4G 遠端測電器及 2.4G 1000mW FPV設備

Minnow

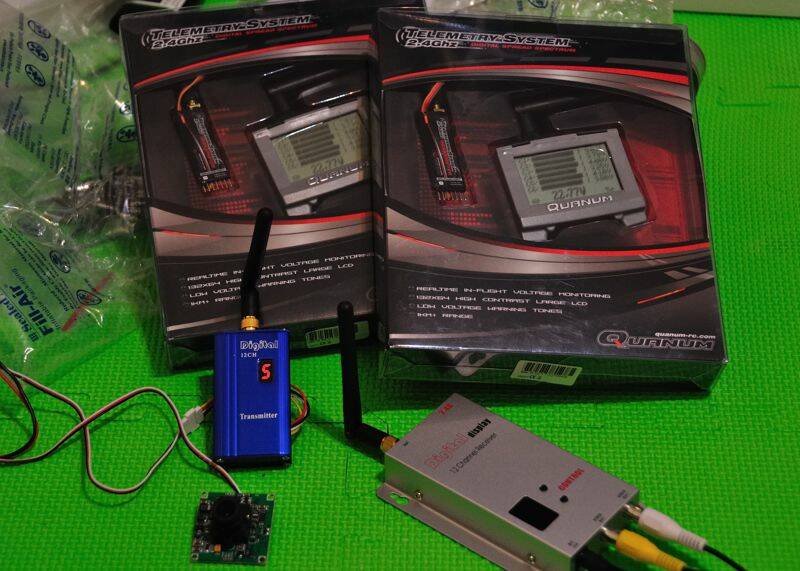

今天收到前幾天買的 2.4G 遠端測電器

可測電壓、安培、溫度,  用在 700E 所以需要兩台

(但是忘了買輕便的天線了)

還有 2.4G 1000mW 無線視訊設備

要來想想是裝在遙控車上或是直昇機上了......



[ 本帖最後由 Minnow 於 2010年9月15日 08:24 PM 編輯 ]

zzy16

1000mW!
真的假的
可以當成微波爐使用嗎?

Makubex

原帖由 zzy16 於 2010年9月15日 08:36 PM 發表
1000mW!
真的假的
可以當成微波爐使用嗎?

1000mW=1W
這應該是NCC規定的功率上限，在此功率內不用申請
應該還好吧... 是不是單位弄錯了?

Richard5257

2.4G 遠端測電器可測電壓、安培、溫度嗎???

[ 本帖最後由 Richard5257 於 2010年9月15日 09:41 PM 編輯 ]

Minnow

原帖由 zzy16 於 2010年9月15日 08:36 PM 發表
1000mW!
真的假的
可以當成微波爐使用嗎?

小弟也不知道真的假的, 此廠牌有不同功率, 小弟是買以下規格

Included.
1 x SONY CCD 1/3inch Camera
1 x 2.4GHz 12 channel Video Transmitter (1000mW)
1 x 2.4GHz 12 channel Video Receiver



Camera spec.
CCD sensor type:1/3 color SONY CCD

Pixel;
NTSC: 510(H)*492(V) (Included)
PAL: 500(H)*582(V)

Scanning system: Interlaced scanning
Synchronization: System:Inter
Horizontal resolution: 420TV line

Minimum Illumination 0.01LUX/F1.2
DSP+CCD: CXD3142R+405AK

S/N Ratio: 48dB

Gamma Modification: 0.45

White balance: Auto
Auto backlight compensation: Auto
Lens: 3.6MM
Audio: No
Input voltage: 9~12.6V

Electric current 80MA

Electronic Shutter: 1/50 (60) ~ 1/100,000s

Video output: 1.0VP-P composite video

Operation Temp.: -20~50
Size: 38*38mm

Flight time: Approx 60min/100mah 3S


FPV Tx Spec.
Channel: 12-Ch, AV synchronization
Power: 1000mW
Input voltage: 8~12V
Weight: 29.9g
Size: 41x28x16mm
Channels: 2.2G/2.3G/2.4G

Minnow

原帖由 Richard5257 於 2010年9月15日 09:32 PM 發表
2.4G 遠端測電器可測電壓、安培、溫度嗎???

規格上是可以, 不過感測頭要另外買,  小弟這次是沒買啦 (因為只想測電壓)

The Quanum telemetry system gives real-time and accurate voltage, current, mAh and temperature display plus low voltage warnings via a robust 2.4Ghz DSSS connection.
The receiver pannel is a large 132x64 LCD and attaches directly to your existing radios antenna for convenient at-a-glance in-flight status checks.
The Quanum Telemetry system will also warn you when your battery pack is approaching 3.2v per cell with a variable audio tone. No more deadstick landings!
And because its 2.4Ghz DSSS it wont interfere with your existing system, no matter what channel youre on!
The Quanum Telemetry system transmits a narrow, lightweight signal 4 times a second and uses DSSS technology to ensure no conflicts with other systems close by. Included is an inbuilt 450mAh Li-ion power source and a convenient in-car and PC USB charge jack!


Specification;
Tx Weight:
16g
Tx Size:
50x17.5mm
Tx Output:
20dBm <100mW 2.4Ghz DSSS
FCC ID:
XR9V003

Included;
Large high contrast 132x64 pixel LCD 2.4Ghz Receiver. (V2)
1km Range 1~6S Transmitter (V2)
Receiver mount (universal type)
Cigarette lighter 5v out USB charger
USB cable. (Charge in car or on a PC)
CE, FCC, RoHS
Note: Current/temp sensor sold separately.
