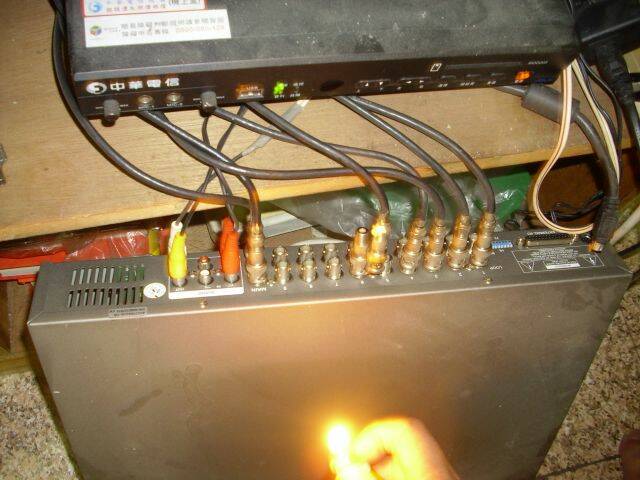

數位監視錄影主機+4鏡頭1夜視鏡頭

junglering

之前開小吃店自己用的
店收起來了~缺錢換現金9000元或
9xII等級的遙控器需要模組與附模擬線喔!!或
600N或50龍
功能皆正常
9路(9分割也就是可以接9個CCD)
硬碟是160GB的大約可以錄1個星期
大約用了2年
電源線被我搞丟了~需要自購喔!!
一般CCD有4支~第5支有紅外線夜視功能只附2個12V整流器喔!!
歡迎電洽0920-424898

這家公司的網站http://www.pilot-hk.com/VCR.html
規格表

Video format	NTSC/EAI or PAL/CCIR
Hard disk storage	IDE type, UDMA 66, support 200GB HDD
Record mode	Manual/ Alarm/ Timer/ Motion
Camera Input Signal	Composite video signal 1 Vp-p75ΩBNC, 9 channels
Camera Loop Back	Composite video signal 1 Vp-p75ΩBNC, 9 channels
Main Monitor Output	Composite video signal 1 Vp-p75ΩBNC
Call Monitor Output	Composite video signal 1 Vp-p75ΩBNC
Audio Input	4 audio inputs, (RCA)
Audio Output	2 audio output, (RCA)
Motion Detect Area	15*12targets per camera (NTSC)/ 15*14 targets per camera
Motion Detect Sensitivity	256 levels
Video Loss Detection	Yes
Refresh Rate	Up to 120 images/sec. For NTSC / 100 images/sec. For PAL
Recording Rate	Up to 25 images/sec. For NTSC / 18 images/sec. For PAL
Dwell Time	Programmable (1~10 Sec)
Picture in Picture	Yes (Movable)
Key Lock	Yes
Picture Zoom	2*2 (Movable)
Camera Title	6 letters
Video Adjustable	Color/ Contrast/ Brightness Adjustable
Alarm Input	TTL input, Hi (5V), Low (GND)
Alarm Output	COM,/N.O
Remote Control	RS-232 or RS-485
Time Display Format	YY/MM/DD, DD/MM/YY, MM/DD/YY, OFF
Power Source	AC100~240 +/- 10% switching adaptor
Power Consumption	<32W
Operation Temperature	10~40oC
RS-232C / RS-485 (bps)	115200,57600,19200,9600,4800,3600,2400,1200
Dimension (mm)	430(W) x 300(H) x 65(D)
Net Weight	5.4kg

[ 本帖最後由 junglering 於 2009年8月3日 07:03 AM 編輯 ]

junglering

超便宜!!~我頂
