Click here to download the PRE-Flight ver 2.90 demo.(V 2.90版,只支援兩個頻道,直接去下載 V1.95 版的既可使用) ~
不知道那裡有正式版可以下載?
用PPjoy 來代替,它們的SUB~ 我用FF-7來作控制 ~

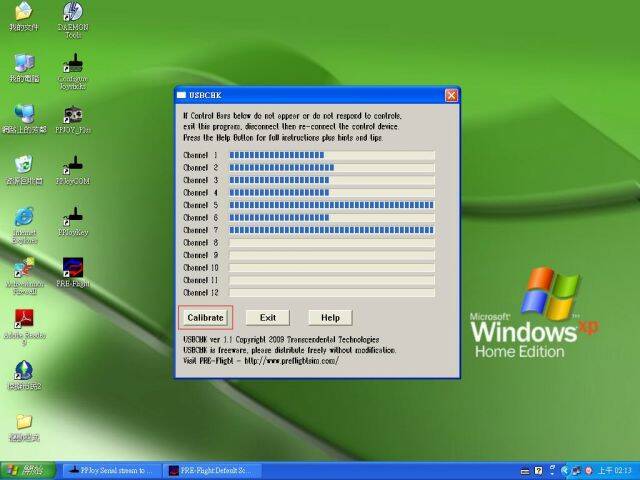

可用它們的USB檢測軟體 USB CHK...
USB CHK 所抓到的頻道：Aileron副翼 Channel 1. Elevator升降 Cahnnel 2. Throttle油門 Channel 3. Rudder方向 Channel 6. VR-6 Channel 4. D/R A Channel 7. D/R D Channel 5~~~
Aux1 Joy Ch 04. Retract Joy Ch 07. ( SW A 縮腳 ).~~~
直昇機頻道:開關 A ：Aux Joy ch 07. 縮腳 (Retract joy ch 07) ~
定速開關油門曲線:100 75 50 75 100.~
熄火降落開關打開（Channel 3 可控制) ~
＊若用飛機頻道：開關 G：(直昇機）縮腳,~ VR-6:螺距,~＊
把定速開關打開,設置油門曲線～
熄火降落,開關打開～

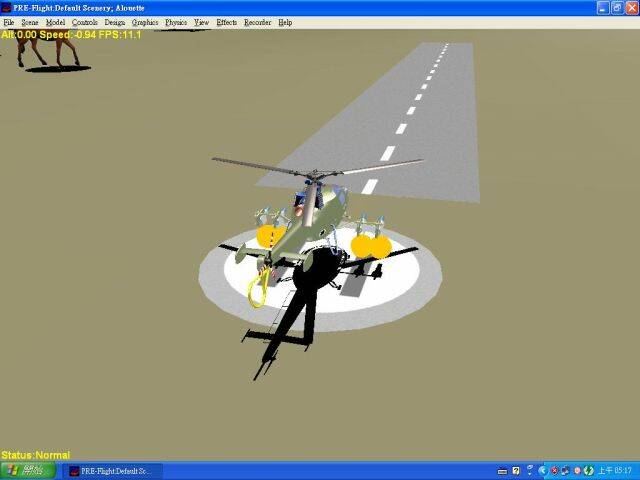

＊直昇機可作倒飛 / 熄火降落＊
飛機頻道,在模擬裡面：_Throttle Joy ch 03.
_Aileron Joy ch 01.
_Elevator Joy ch 02.
_Rudder Joy ch 07.(縮腳. SW G ).
_Retract Joy ch 04.(襟翼. VR-6).

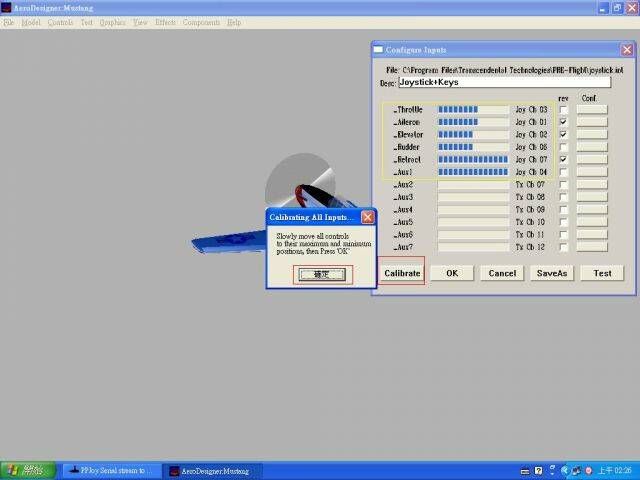

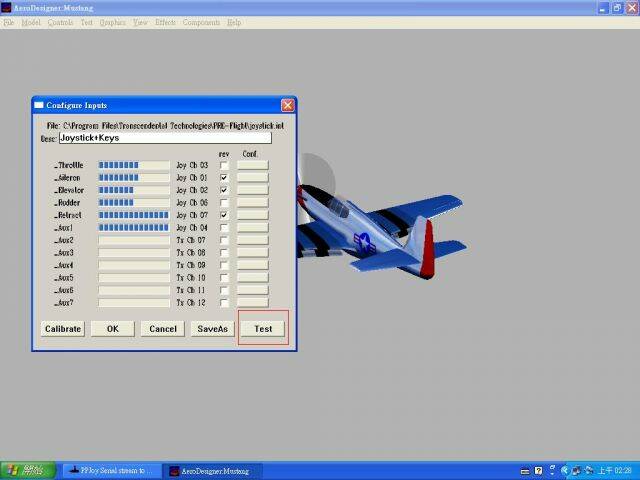

直昇機頻道,在模擬裡面：_Throttle Joy ch 03.
_Aileron Joy ch 01.
_Elevator Joy ch 02.
_Rudder Joy ch 06.
_Retract Joy ch 07. (縮腳 SW-A).
_Aux Joy ch 04. (螺距).
USBCHK ver 1.1a - file size is about 80KB. Click here to download the curent version.
* PRE-Flight Requirements:
Windows 95/98/ME/2000/XP/Vista DirectX ver 9 or higher (Note: Windows XP comes with DirectX 8.1;
Windows Vista comes with DirectX 10) at least one free USB port for interface at least
1.0Ghz Pentium at least 256MB main memory at least 64MB video card memory with DirectX 8
3D acceleration sound card or integrated sound system optional, sound provided by PRE-Flight USB interface if required
Supported RC Transmitters:
2.4 GHz (6-pin square micro socket)
Futaba (6-pin suqare micrp socket)
Futaba (6-pin round socket)
Spectrum/Spektrum DX5 Spectrum/Spektrum DX6/DX6i
Spectrum/Spektrum DX7
Heli-Max 4ch/5ch(6-pin square micro socket)
Heli-Max Novus 2.4GHz 4ch/6ch
JR (3.5mm socket) JR 2.4 GHz (3.5mm socket)
Hitec (6-pin round socket)
Walkera 2.4GHz 4ch/6ch
WK-2401/WK-2601
alkera 2.4GHz 8ch
WK-2801
Walkera Dragonfly 4ch
Walkera Dragonfly 6ch
Walkera Dragonfly 7ch PCM or non-PCM
Walkera Dragonfly 8ch
Blade CP, CP+ and CP Pro (E-Flite)
Blade CX (E-Flite) Blade CX2 (E-Flite)
Blade 400 (Spektrum DX6/DX6i E-Flite)
Esky/E-Sky 4ch (Honeybee, Twister, etc) (round socket)
Esky/E-Sky 6ch (Honeybee, Belt-CP, Twister, etc) (round socket)
Esky/E-Sky 2.4Ghz (round socket)
Hummingbird (Century, round socket)
Multiplex (PPM, 5-pin socket)
Sanwa/Airtronics (PPM, 5-pin socket)
Sanwa (PPM, 6-pin socket)
Art-Tech E-Fly (round socket)
Tower Hobbies (round socket)
Kyosho (square socket)
Lexors (round socket)
Robbe (5-pin round socket)
Oris (round socket)
Graupner (stereo socket)
Graupner (mono socket)
Robbe (2.5mm mono socket)
Robbe (3.5mm mono socket)
Futaba with FM capability (2.5mm mono socket)
GWS (stereo socket)
Supported Joysticks: -Any Windows-compatible joystick which can be calibrated in Windows' Control Panel, Gaming Options. This can be USB, Serial, Gameport, IR, etc. joysticks with up to 8 proportional channels.
(提供的任何Windows兼容的操縱桿，可以校準Windows的控制面板，遊戲選項。這可以是USB，串行，遊戲端口，紅外光譜，操縱桿等多達8比例渠道。 )
See this page to download the USB checker to test if your controller is suitable.
.(看到這個頁面，下載的USB檢查測試，如果你的控制器是合適的。)

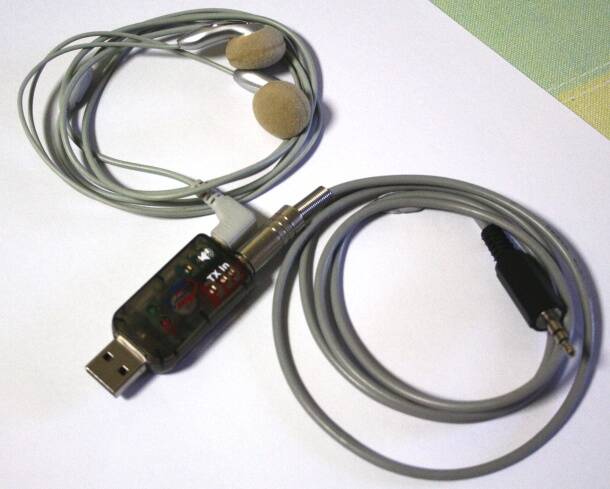

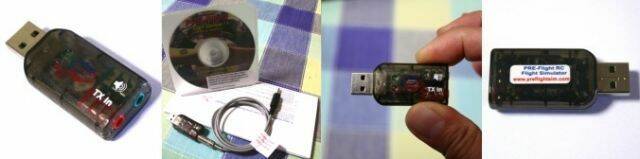

PRE-Flight Interface USB$10.00.
Choose the required Software Edition Download:選擇所需的軟件版本下載
(Note: All prices in US Dollars. Visa, Mastercard, Bankcard, or Paypal accepted thru secure 128-bit SSL encryption.)注意： 所有價格以美元。 簽證、萬事達卡、通過安全128位SSL加密被接受的銀行卡或者Paypal
PRE-Flight Standard Edition Download...$24.95 ~
PRE-Flight Super Helicopter Edition Download...$39.95 ~
PRE-Flight Esky Edition Download...$29.95 ~
PRE-Flight Blade Edition Download...$29.95 ~
PRE-Flight Dragonfly Edition Download...$29.95 ~
PRE-Flight T-Rex Edition Download...$29.95 ~
If you wish the CD Version as well as the download (for an extra $5.00 copy service and postage fee), click on a selection below: 如果您祝願CD的版本並且下載(為一額外$5.00複製服務和郵費費)，點擊選擇如下:
PRE-Flight Standard Edition Download Plus CD...$29.95 ~
PRE-Flight Super Helicopter Edition Download Plus CD...$44.95 ~
PRE-Flight Esky Edition Download Plus CD...$34.95 ~
PRE-Flight Blade Edition Download Plus CD...$34.95 ~
PRE-Flight Dragonfly Edition Download Plus CD...$34.95 ~
PRE-Flight T-Rex Edition Download Plus CD...$34.95
Order PRE-Flight Spare Transmitter Cables命令起飛前發射機備用的模擬纜線
Futaba 2.4Ghz(6-pin square micro socket)...$9.95
Futaba with FM capability (6-pin square micro socket)...$9.95
Futaba with FM capability (6-pin round socket)...$9.95
Hitec with FM or PPM capability (6-pin round socket)...$9.95
JR with PPM capability (mono socket)...$9.95
Spectrum/Spektrum DX5...$9.95
Spectrum/Spektrum DX6/DX6i...$9.95
Spectrum/Spektrum DX7...$9.95
Heli-Max 4ch/5ch(6-pin square micro socket)...$9.95
Blade CP E-flite(round socket)...$9.95
Blade CX E-flite...$9.95
Blade CX2 E-flite(round socket)...$9.95
Walkera 2.4GHz 4ch/6ch WK-2401/WK-2601...$9.95
Walkera 2.4GHz 8ch WK-2801...$9.95
Walkera Dragonfly 4ch without knobs(round socket)...$9.95
Walkera Dragonfly 6ch with knobs(round socket)...$9.95
Walkera Dragonfly 7ch (PCM and Non-PCM round socket)...$9.95
Walkera Dragonfly 8ch with knobs(round socket)...$9.95
E-Sky/Esky/Honeybee/Twister 4ch (round socket)...$9.95
E-Sky/Esky/Honeybee/Twister 6ch (round socket)...$9.95
E-Sky 2.4Ghz(round socket)...$9.95
Art-Tech E-Fly (round socket)...$9.95
Tower Hobbies (round socket)...$9.95
Kyosho (square socket)...$9.95
Lexors (round socket)...$9.95
Robbe (5-pin round socket)...$9.95
Oris (round socket)...$9.95
Graupner (stereo socket)...$9.95
Graupner (mono socket)...$9.95
Robbe (2.5mm mono socket)...$9.95
Robbe (3.5mm mono socket)...$9.95
Futaba with FM capability (2.5mm mono socket)...$9.95
Multiplex (PPM, 5-pin socket)...$9.95
Sanwa (PPM, 6-pin socket)...$9.95
Sanwa/Airtronics (PPM, 5-pin socket)...$9.95
GWS (stereo socket)...$9.95
Plus Postage and Handling to anywhere in the world (add to all orders of PRE-Flight Spare Cables) - $ 5.00. Save! Only $5.00 total postage for multiple items!
Order PRE-Flight Spare Transmitter Cables
Click on the links above or if you prefer fax or airmail, email me using this link ttransce@bigpond.net.au and request an order form.
Print the order form using Microsoft Word then fax it to:
+61-3-9574-9167 (Australia)
Note: Above fax is for ORDERS ONLY - any other communication may be delayed.
Or send it by airmail to:
Transcendental Technologies
Suite 148, 66 Kingsway
Glen Waverley Vic. 3150
Australia
Please make sure all information is filled in, including your email
address.
命令起飛前備用的發射機模擬線
點擊鏈接上面或，如果您更喜歡電傳或航空郵寄，使用這個鏈接ttransce@bigpond.net.au給我發電子郵件并且請求定貨單。
使用Microsoft Word打印定貨單然後電傳它對：
+61-3-9574-9167 (澳洲)
筆記： 在電傳之上只是為命令-其他通信也許被延遲。
或送它空郵對：
卓越的技術
# 148， 66 Kingsway
幽谷Waverley Vic。 3150
澳洲
請確定所有信息被填裝，包括您的電子郵件
地址。
